  1. Emergency Telephone Pillar JR306-SC-SP
Emergency Telephone Pillar JR306-SC-SP

Emergency Telephone Pillar JR306-SC-SP

  • Robust cold-rolled steel housing
  • IP65 Waterproof rating
  • Hands-free full-duplex communication with one-button calling
  • Built-in 2W speaker
  • CE, FCC, RoHS, IK10, IP65, ISO9001 standards
Get Pricing/info Download
Top
Main Features
Applications
Technical Specifications
Installations & Applications
Contact Us

Main Features

  • Solar power offers substantial savings when compared to costly trenching for power cable. Widely used in campuses, parking lots, airports, commercial centers, hospitals, industrial parks, walkpath, amusement parks / recreational Facilities, highways/tunnels and remote outdoor areas such as forest parks.
  • Support SIP-based network connections. Simply connect a network cable to establish telephone communication. With a unified voice and data infrastructure, installation and maintenance are significantly simplified—reducing time, operational efforts, and communication costs.
  • Support 4G wireless connection with 4G module with SIM cards for data transmission, and can be used as long as the signal coverage is available. This options offer significant savings when NO power or NO telephone line available.

  • Solar power supply, with mounting bracket, adjustable in multiple directions
  • Built-in high capacity battery for long standby time
  • Internal solar charger controller
  • Sensor light, automatically turns on at night and turns off during the day
  • Orange appearance, eye-catching and easy to identify (Custom color available)
  • Warranty: 24 monthes for telephone, 12 month for column
  • Floor mounted, stable structure
  • Necessary mounting hardware

Applications

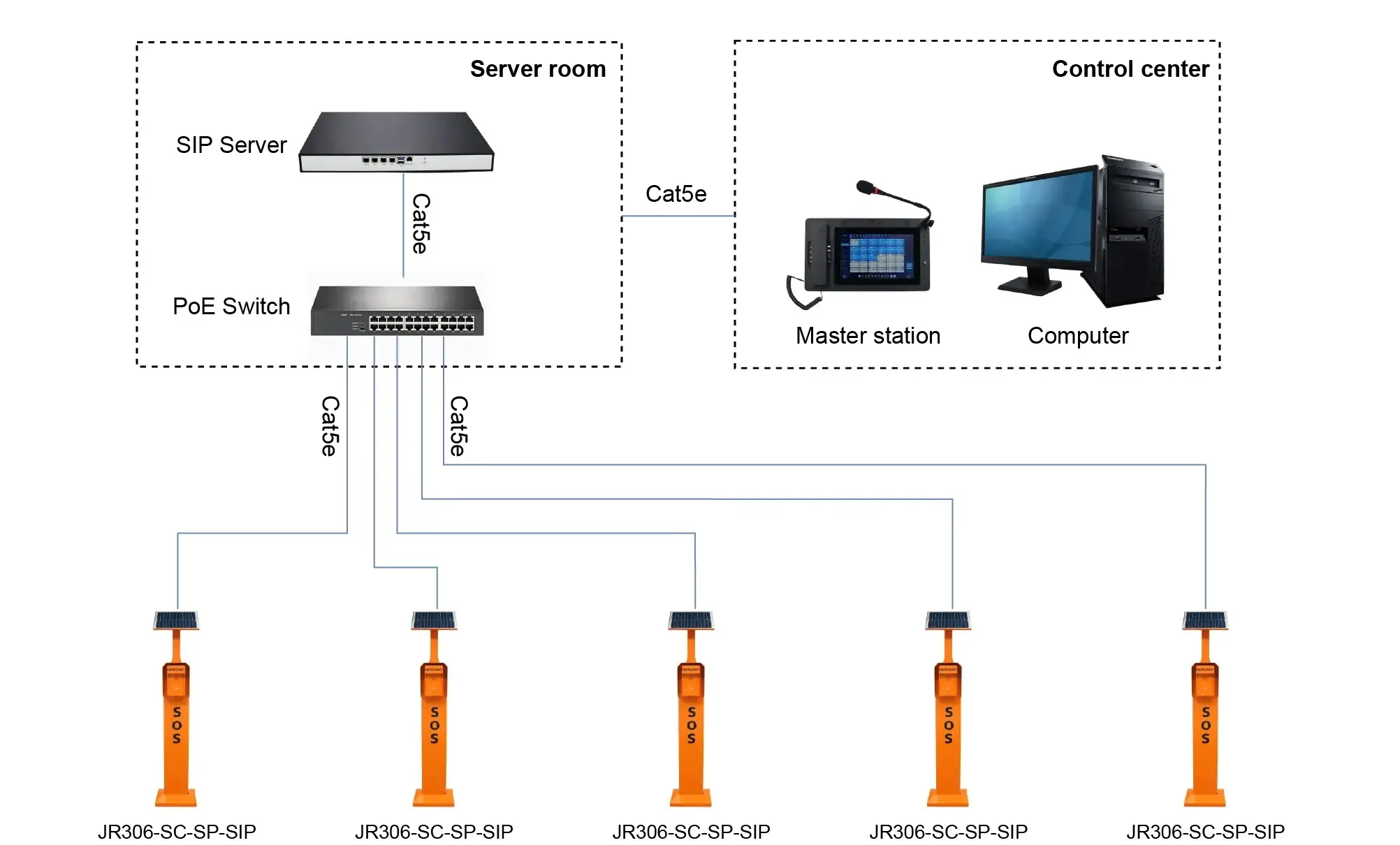

1.IP telephony system is an efficient and convenient communication solution that uses Internet connection to implement voice calls and other communication services. Compared with traditional telephone systems, IP telephone system has higher efficiency and conve- nience.

JR306-SC-SP APPLICATIONS

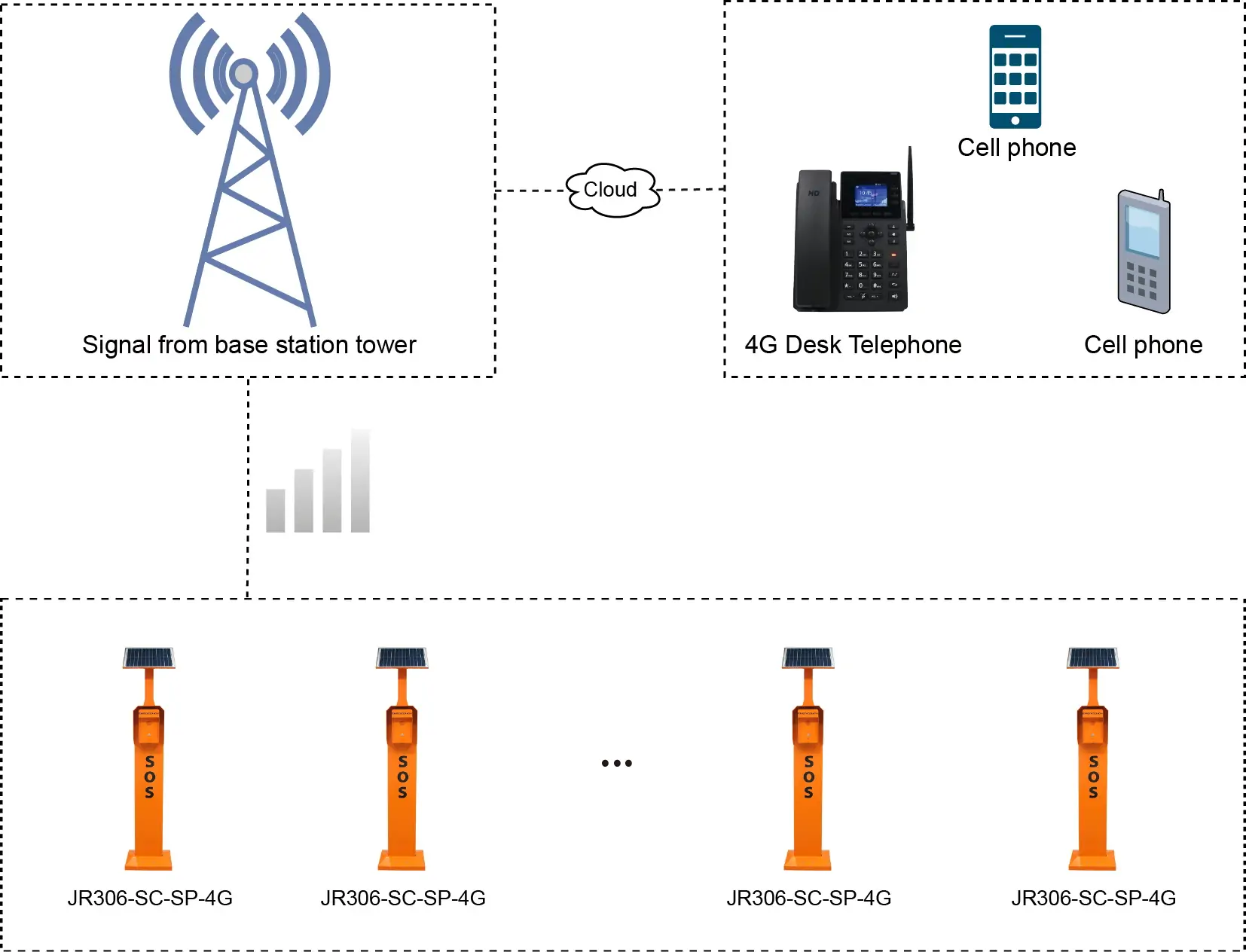

2.Insert the SIM card into the 4G phone and connect to the operator's network to make calls

JR306-SC-SP APPLICATIONS

Product Video

Technical Specifications

SIP Specifications
Power supply PoE powered or 12V DC powered
Power adapter 100~240VAC 50~60Hz / 12V DC
Power consumption Idle 1W / Working 2.4W
SIP protocol SIP 2.0 (RFC3261)
Network port parameters WAN Port: 10/100Base- T RJ-45 for LAN, Auto MDIX,LAN Port: 10/100Base- T RJ-45 for PC, Auto MDIX
Voice coders G.711 A/U, G.722 8000/16000, G.723, G.729
Communication mode Full duplex
Ringing volume 90~95 dB (A) @ 1 meter
Technical Specifications
Compatible with most SIP-based IP-PBX servers that comply with SIP RFC 3261
PoE 802.3af enabled (Power-over-Ethernet) or alternate power source
PoE power supply, supports connecting the external loudspeakers (No external power supply needed)
Supports automatic switching between primary and backup servers
Supports remote Telnet debugging
Supports two relays to remotely control external devices
Operating temperature -40˚C to 65˚C / Storage temperature -40°C to 75°C
M.T.B.F. exceeds 50,000 hours under normal operating conditions
Network Web Management
Fully configurable through any internet browser
Static IP address provisioning or DHCP support
Product self-diagnostic testing available through the web interface
Network-adjustable earpiece volume and microphone sensitivity
Firmware upload via web interface
Echo cancellation: Supports G.168, and hands-free can support 96ms
Supports SIP domain, SIP authentication (none, basic, MD5), and DNS name of server
DTMF: SIPINFO, INBAND, RFC2833
Dials Plan: Flexible dial-up configuration, support hotline
Network Features
WAN/LAN: Supports Bridge mode
Supports static IP address
Supports DHCP to obtain an IP adress on WAN port
Supports VLAN
Supports web config
Data Protocols: IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, ONVIF, SNMPv1, RTCP-XR, 802.1x, Static IP/DHCP IP Assignment,IEEE 802.1p/Q, QoS/ToS,
HTTP/HTTPS/DHCP, NTP, FTP/TFTP, CDP/LLDP VLAN Configuration, LDAP

Installations and Applications

Highway

Highway

Railway

Railway

Scenic spots

Scenic spots

Seaside

Seaside

Smart city

Smart city

School

School

Parking

Parking

Parking	Industry zone

Parking Industry zone

Optional Accessories

No related content

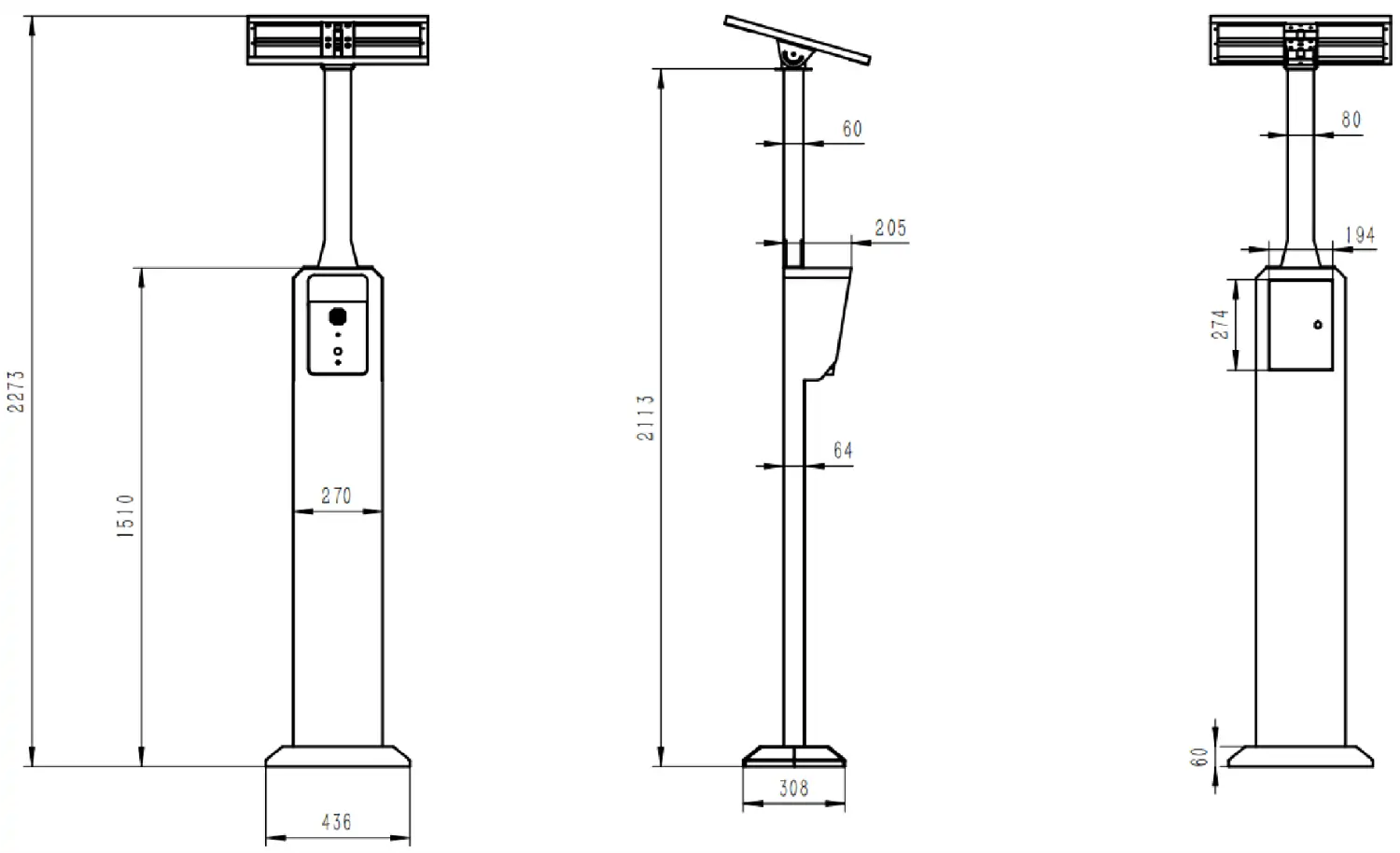

Dimensions

JR306-SC-SP Dimensions
Telephone Pillar Solar Panel
Shipping dimensions 162*52*47 cm Shipping dimensions 56*58*7 cm
Weight 64 kg Weight 12 kg
Packaging materials Pearl cotton, wooden case Packaging materials Pearl cotton, wooden case
