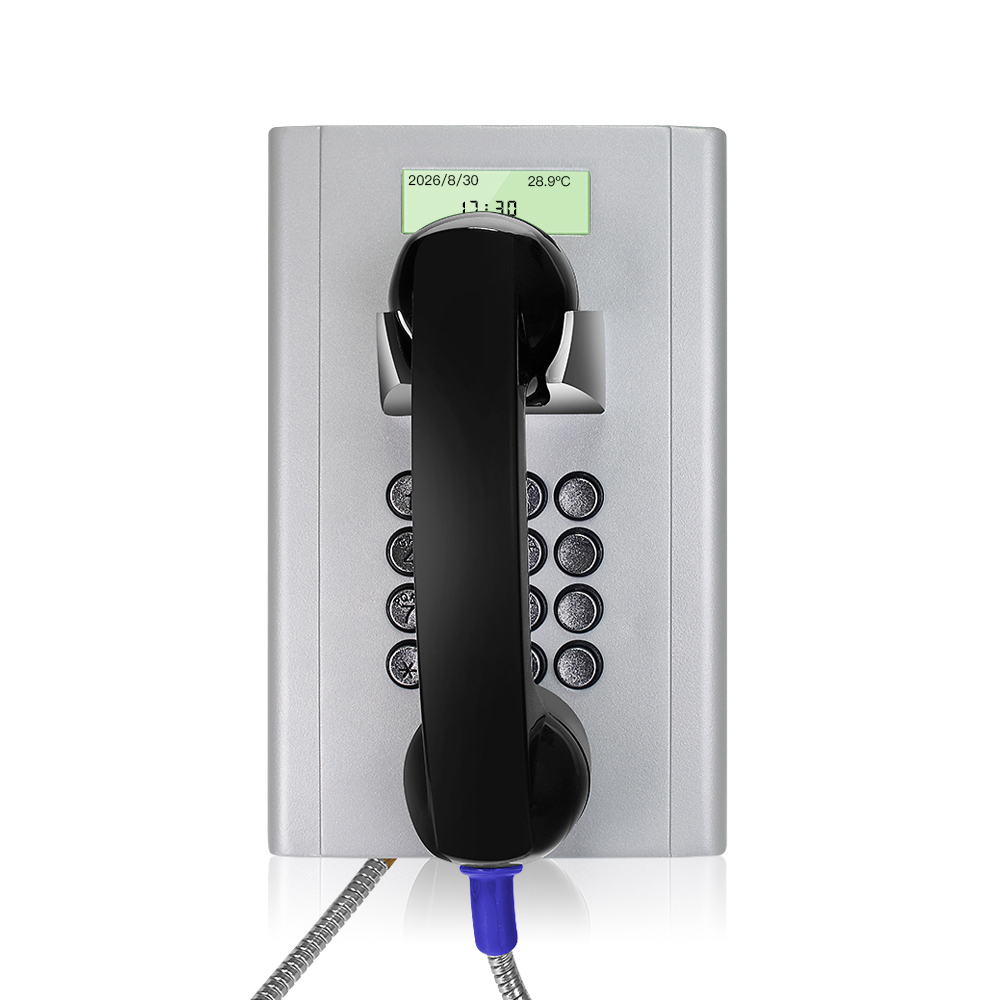

Vandal Resistant Telephone JR204-FK-AL

Robust cold-rolled steel housing
Protection level IP54
Advanced noise reduction technology for HD calls
Corrosion-resistant hardware
CE, FCC, RoHS, IK10, ISO9001 standards

Get Pricing/info Download

Main Features

Housed in a corrosion-resistant stainless steel/cold-rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communication is maintained at all times.

Housing has a grounding device and is completely electrically isolated from the internal circuit, with a certain electromagnetic shield- ing effect, and the voice is clear and loud during the call, without whistling back. Armored "cord" provides additional resistance to vandalism or heavy industrial use.

The series telephones are designed to meet the needs of clients who experience losses due to vandalism. Ideal for parking lots, prisons, airports, railway, metro, ATMs machines, platforms, hospitals, police stations, shopping mall, stadiums, etc.

With LCD display 128 x 64 pixels
Full metal keypad (16keys), 4 additional buttons programmable for speed-dial (optional)
ABS material handset with noise-cancelling microphone and 83 cm armored cord
The handset supports hearing aid compatibility (HAC)
Magnetic reed hook-switch
Grey; other colors available upon special request
Wall-mounted design, simple installation

Applications

1.Analog telephone connects to the PABX and call outside lines through the PSTN.

JR204-FK-AL APPLICATIONS

2.Analog telephone connects to voice gateway, converts analog signal to SIP signal, and is applied in SIP-based systems.

JR204-FK-AL APPLICATIONS

Product Video

Technical Specifications

Analog Specification
Power supply	Drawn from telephone line
Operating voltage	24 VDC to 65 VDC
Operating current	20 mA DC to 100 mA DC
Ringer operating voltage	48 VAC to 90 VAC (calling frequency 21 to 54 Hz)
Ringing volume	80 dB (A) @ 1 meter
Dialing method	PD or DTMF mode can be set via the menu. DTMF mode in accordance with ITU-T recommendation Q.23
Lightning / Transients	Protection to ITU-T K.21 enhanced levels
Programming	It can be programmed remotely via DTMF tones or the keypad
Technical Specifications
Compatible with all the standard PABX systems
Remote programming allows you to manage your network from a central location
Programmable auto hang-up timer
Supports automatic dialing with delay after picking up the phone
Supports scheduled dialing to the central control phone to detect whether the phone is working properly
Supports one relay to remotely control external devices
Supports MIC mute function
Supports call transfer
Can be adapted according to the model of the Analog PABX to support the sequential calling function
Phone line powered
Operating temperature -40˚C to 65˚C / Storage temperature -40°C to 75°C
M.T.B.F. exceeds 50,000 hours under normal operating conditions
