Waterproof Telephones JR103-FK-LCD-AL

Aluminum alloy die-casting body
Protection level IP66/IP67
Advanced noise reduction technology for HD calls
Supports 10 groups of speed dialing
CE, FCC, RoHS, IK10, IP67, ISO9001 standards

Get Pricing/info Download

Main Features

It was designed for public and industrial areas requiring a virtually indestructible telephone. The housing is made of die-cast aluminum alloy, with a weatherproof enclosure and an exterior polyurethane finish. It is designed to withstand high levels of humidity, dust, vibration, shock, extreme temperatures, (salt)water, abuse or attempted vandalism.

Typical applications include Outdoor Environments, Public Highways, Underground Tunnels / Mining, Offshore Wind Farms, Production Floors, Chemical Processing Sites, Power Stations or inside large Lifting Machinery such as Quayside Container Cranes, Rubber-Tyred Gantry Cranes (RTGs) and bulk-material Ship Loaders.

Aluminum alloy die-casting body
Protection level IP66/IP67
Advanced noise reduction technology for HD calls
Supports 10 groups of speed dialing
CE, FCC, RoHS, IK10, IP67, ISO9001 standards

Applications

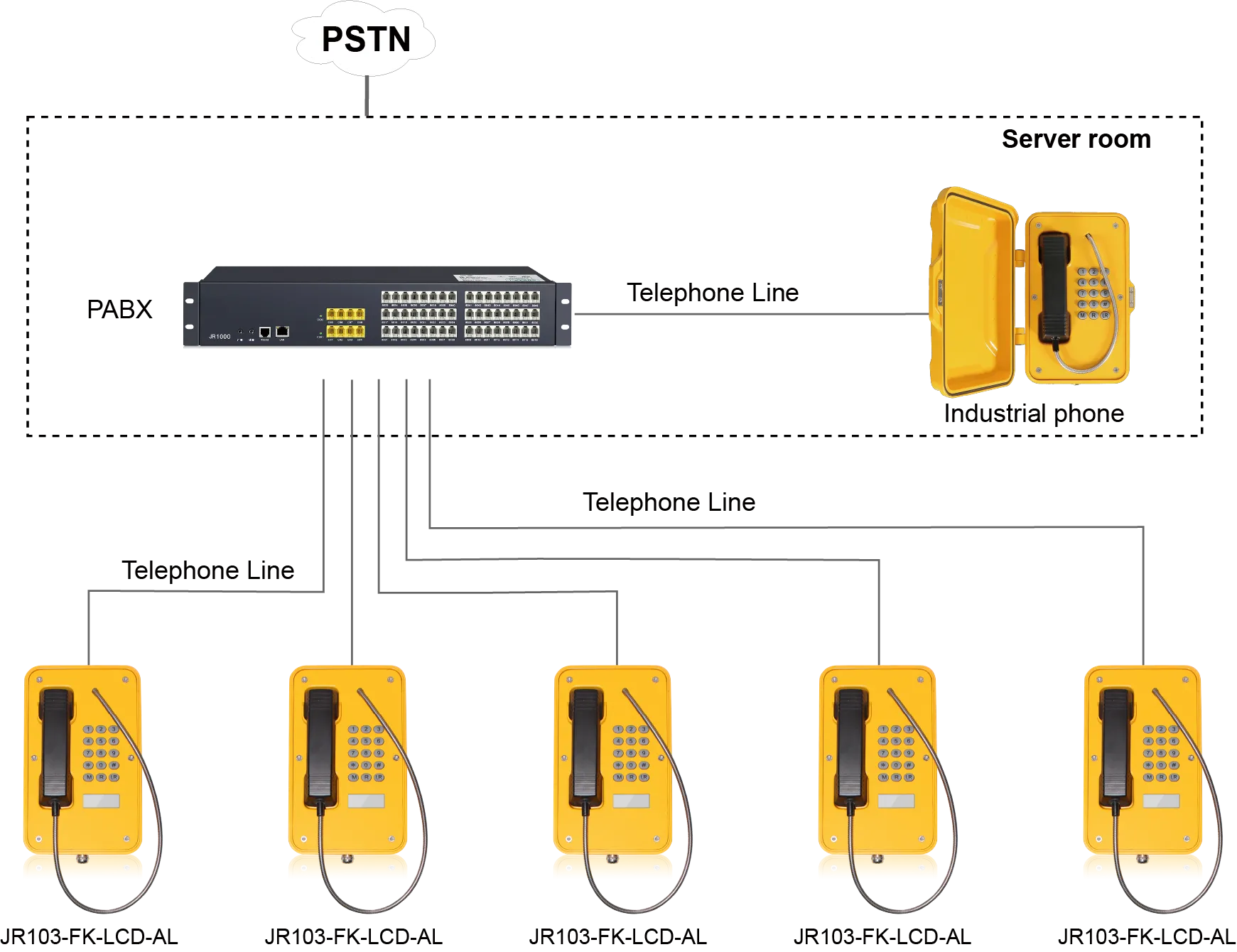

1.Analog telephone connects to the PABX and call outside lines through the PSTN.

JR103-FK-LCD-AL APPLICATIONS

2.Analog telephone connect to voice gateway, converts analog signal to SIP signal, and is applied in SIP-based systems.

JR103-FK-LCD-AL APPLICATIONS

Product Video

Technical Specifications

Analog Specification
Power supply	Drawn from telephone line
Operating voltage	24 VDC to 65 VDC
Operating current	20 mA DC to 100 mA DC
Ringer operating voltage	48 VAC to 90 VAC (calling frequency 21 to 54 Hz)
Ringing volume	80 dB (A) @ 1 meter
Dialing method	PD or DTMF mode can be set via the menu. DTMF mode in accordance with ITU-T recommendation Q.23
Lightning / Transients	Protection to ITU-T K.21 enhanced levels
Programming	It can be programmed remotely via DTMF tones or the keypad
Technical Specifications
Compatible with all the standard PABX systems
Remote programming allows you to manage your network from a central location
Programmable auto hang-up timer
Supports automatic dialing with delay after picking up the phone
Supports scheduled dialing to the central control phone to detect whether the phone is working properly
Supports MIC mute function
Supports call transfer
Supports the telephone line to power external light fixed on the top (no external power supply needed)
Supports one relay to remotely control external devices
Can be adapted according to the model of the Analog PABX to support the sequential calling function
Operating temperature -40˚C to 65˚C / Storage temperature -40°C to 75°C
M.T.B.F. exceeds 50,000 hours under normal operating conditions
