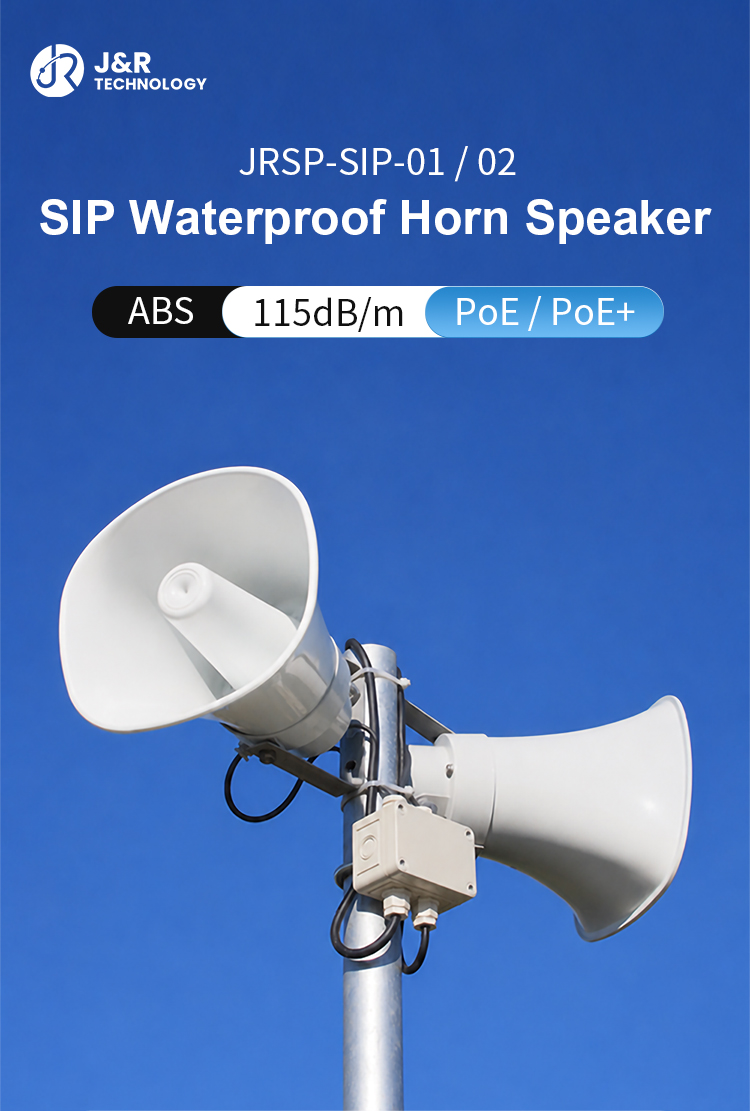

IP PoE Horn Speaker JRSP-SIP-01

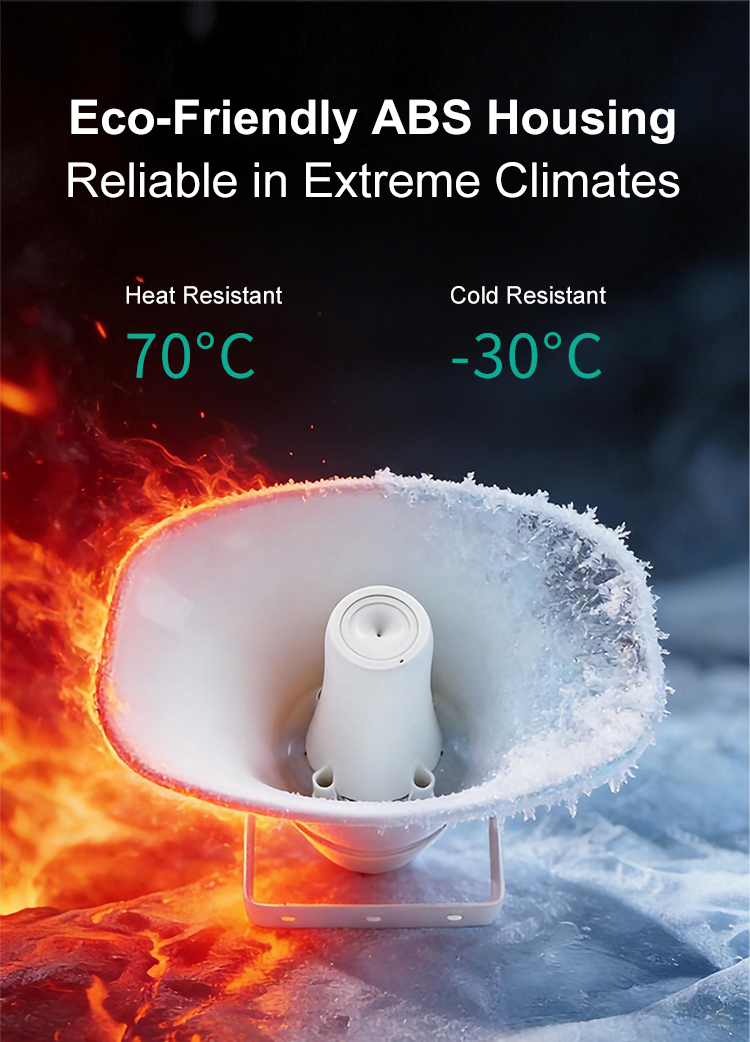

■ All-in-One Design: The amplifier and speaker are housed in a rugged ABS enclosure with a stainless steel mounting bracket, ensuring a solid and reliable structure.

■ High-Volume Output: Built-in high-performance speaker delivers over 115 dB when powered via PoE, ensuring clear and powerful voice output in outdoor environments.

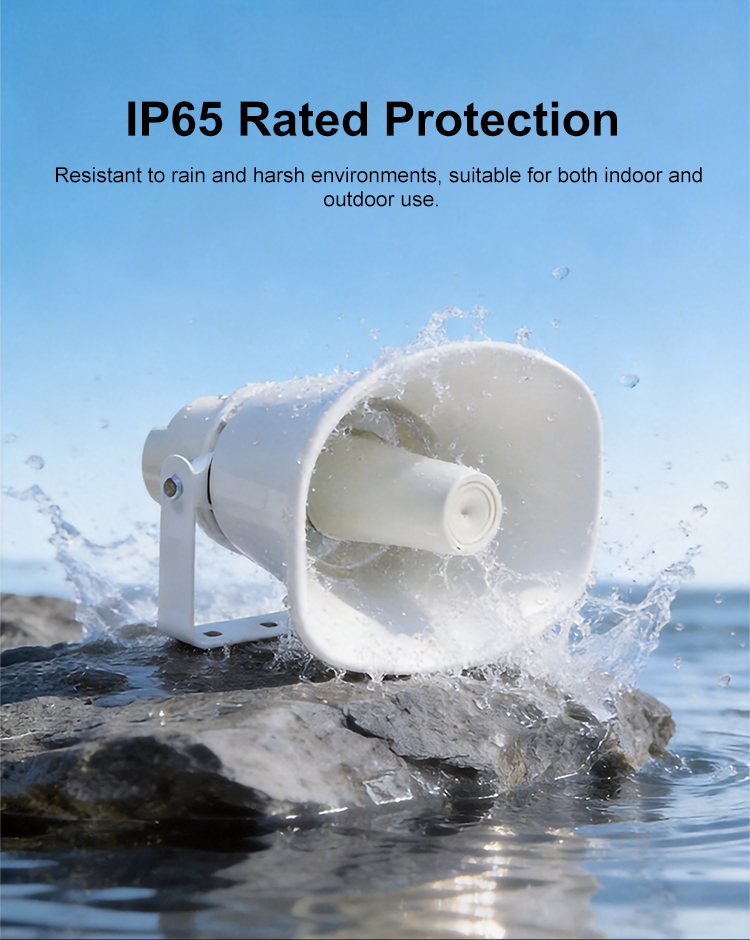

■ Excellent Weather Resistance: IP65-rated protection enables stable operation in harsh environments from -40°C to 60°C.

■ Flexible Power Supply: Compatible with both PoE and PoE+, supporting a wide range of installation and deployment scenarios.

■ Remote Management: Supports remote management and online firmware upgrades, making ongoing system optimization and maintenance more convenient.

Get Pricing/info Download

Main Features

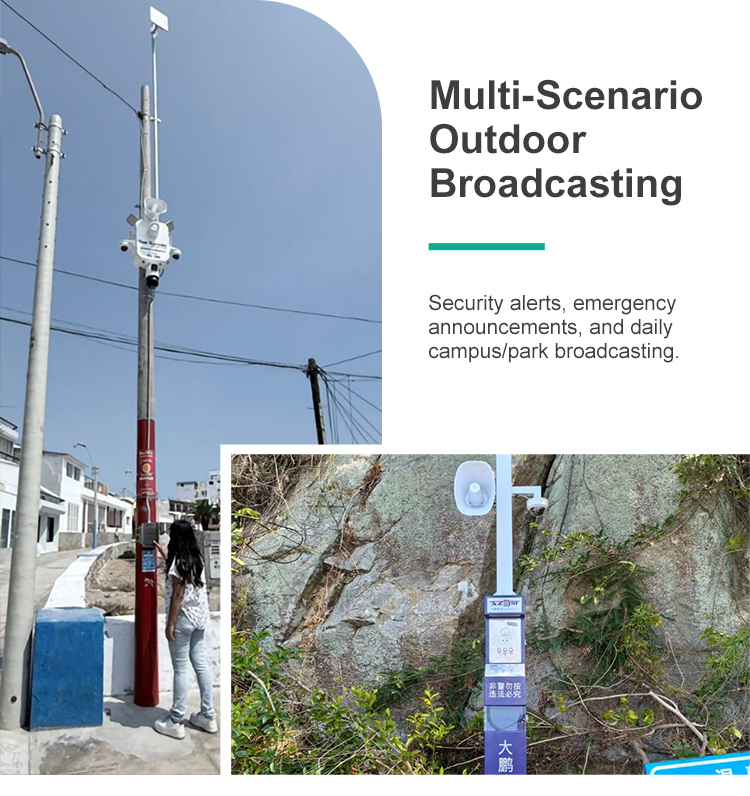

Designed Specifically for Outdoor Environments

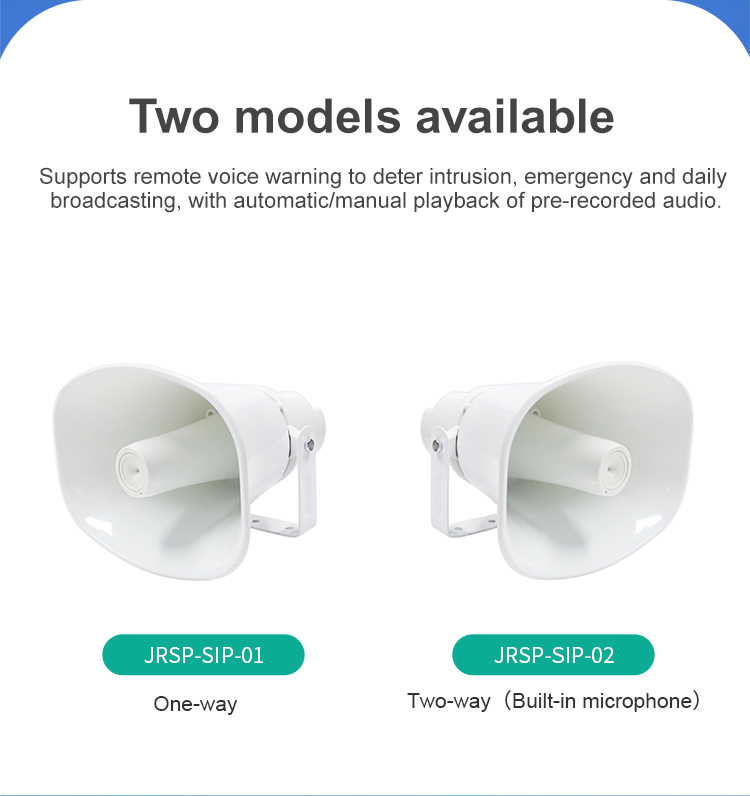

This speaker enables users to remotely issue voice warnings to intruders, helping deter criminal activities. It can also be used to deliver instructions during emergencies or for daily voice broadcasting.
■ Supports manual or automatic playback of pre-recorded audio files when an alarm event occurs.

Acoustic Hood JRSP-SIP-01

Applications

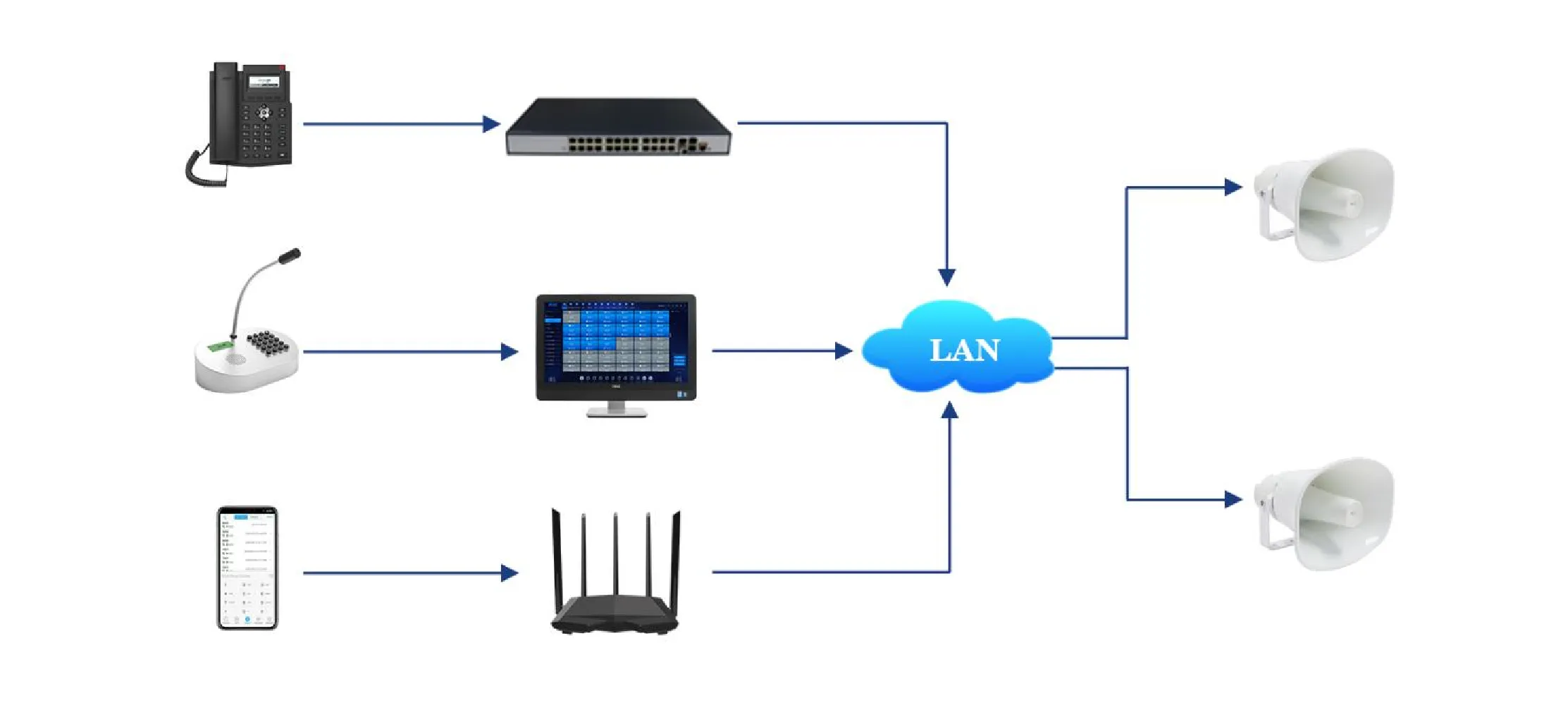

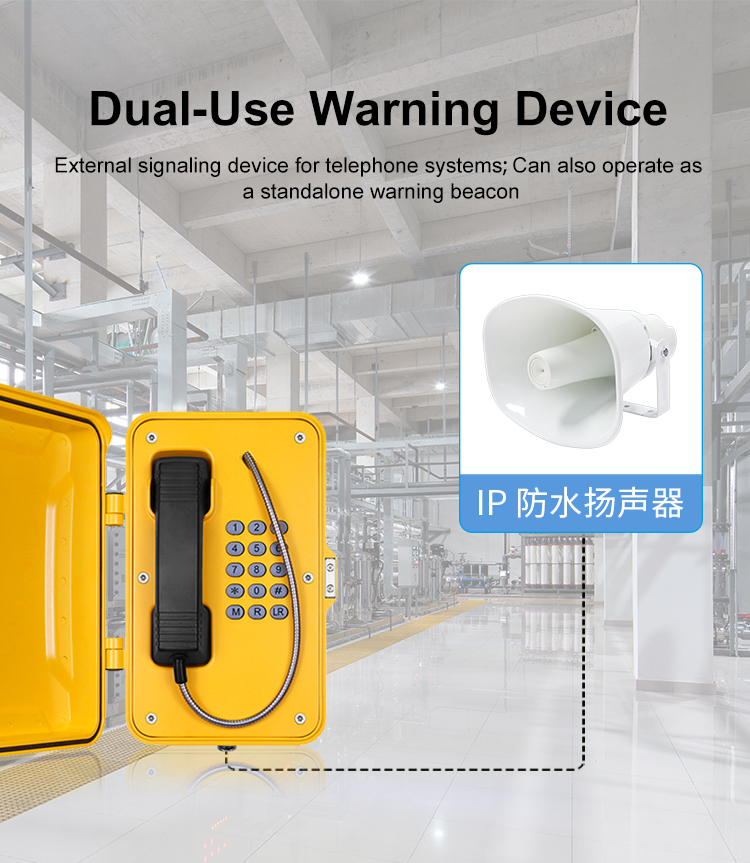

1.The IP PoE Horn Speaker JRSP-SIP-01 support SIP protocol which can be independently used as a sip endpoint to integrated with mainstream VOIP system for receiving sip call from SIP phone or SIP softphone Meanwhile, it also can receive broadcast from J&R management software, IP Paging Mic and SIP-APP.

JRSP-SIP-01 APPLICATIONS

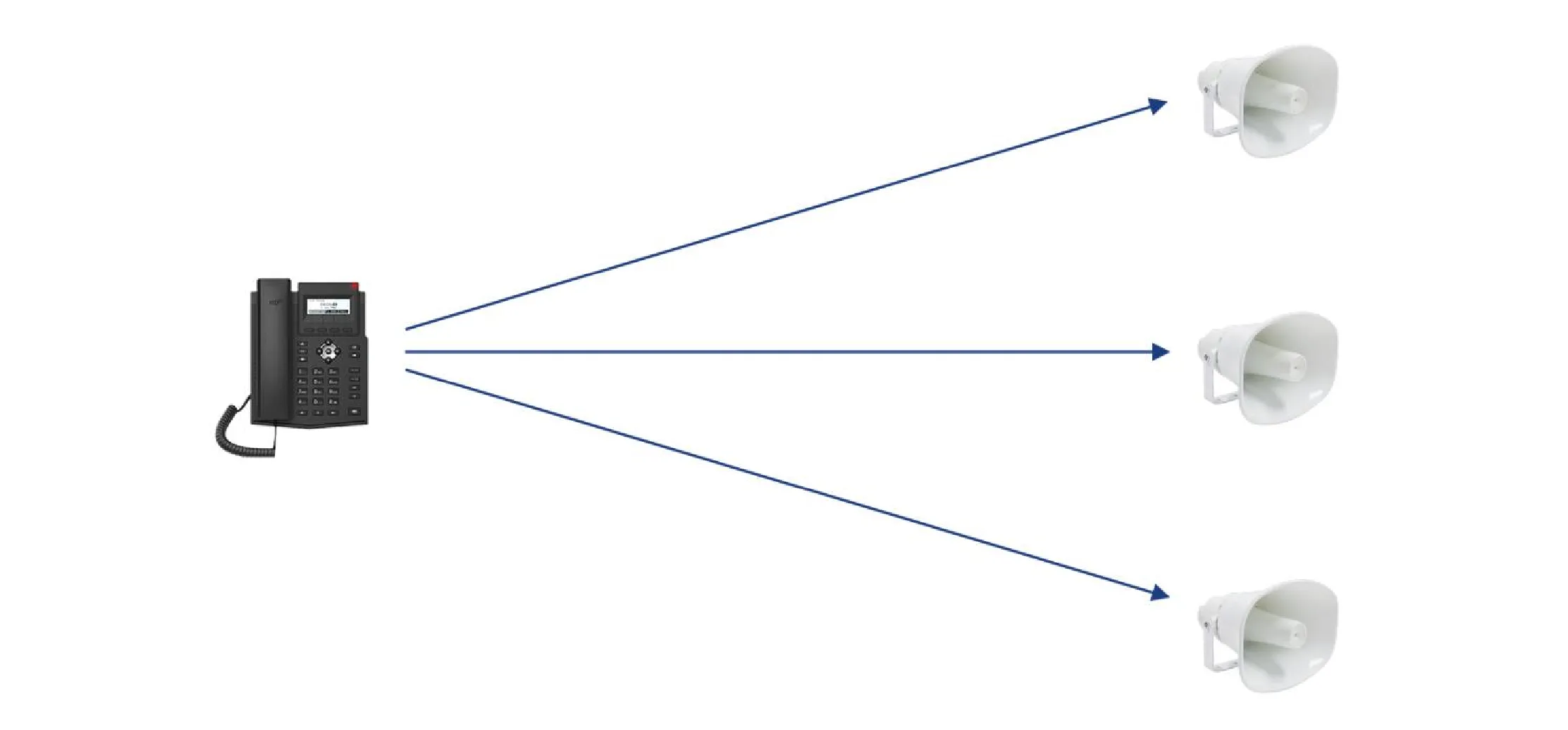

2.The IP PoE Horn Speaker JRSP-SIP-01 support paging from SIP phone by using multicast address , the multicast address and priority can be set on its webpage.

JRSP-SIP-01 APPLICATIONS

Product Video

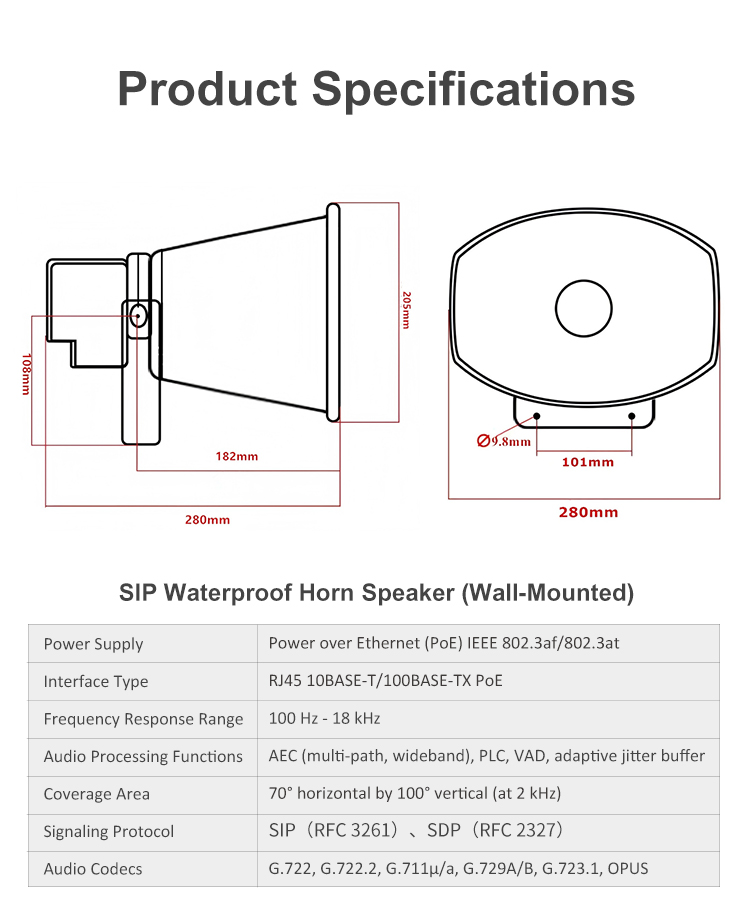

Technical Specifications

Audio
Audio streaming	One-way
Audio encoding	G.722, G.722.2, G.711μ/a, G.729A/B, G.723.1,OPUS
Additional Media Features	Acoustic echo cancelation (AEC) - multiple path, wideband acoustic EC, Packet Loss Concealment, Silence Suppression, Voice Activation Detection, Adaptive Jitter Buffer
Speaker
Max sound pressure level	>115dB
Frequency response	100-18K
Coverage pattern	70° horizontal by 100° vertical (at 2 kHz)
Amplifier
Amplifier description	Built-in 25w/30W Class D amplifier
Protocol Support
VoIP and Signaling	SIP-RFC 3261, SDP-RFC 2327, SIP over TCP/UDP/TLS, DNS-SRV (Redundancy) Digest authentication, PRACK, Early Media, SIP Subscribe notify, BLF (busy lamp field)
Data Protocols	IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, RTCP-XR, 802.1x, Static IP / DHCP IP Assignment, IEEE802.1p / Q, QoS / ToS, HTTP / HTTPS / DHCP, NTP, FTP / TFTP, CDP / LLDP VLAN Configuration, LDAP
Security	802.1x, HTTPS, SIP over TLS and SRTP, Configuration file encryption
Provisioning & Management	Web Server for Configuration and Management,Configuration update via FTP, TFTP, HTTP, HTTPS, DHCP Options (66, 67, 160, 12, 60, 77)
General Specifications
Casing	Impact-resistant engineering plastic, IP65-rated
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at
Connectors	RJ45 10BASE-T/100BASE-TX PoE
Operating conditions	-40°C to 60°C Humidity 10-95 % RH (condensing)
Warranty	One-year warranty
Packaging Specifications
Product dimensions	280 × 280 × 205 mm (L × W × H)
Weight	1.8 kg
Packaging material	EPE foam lining + carton box

Optional Accessories

No related content

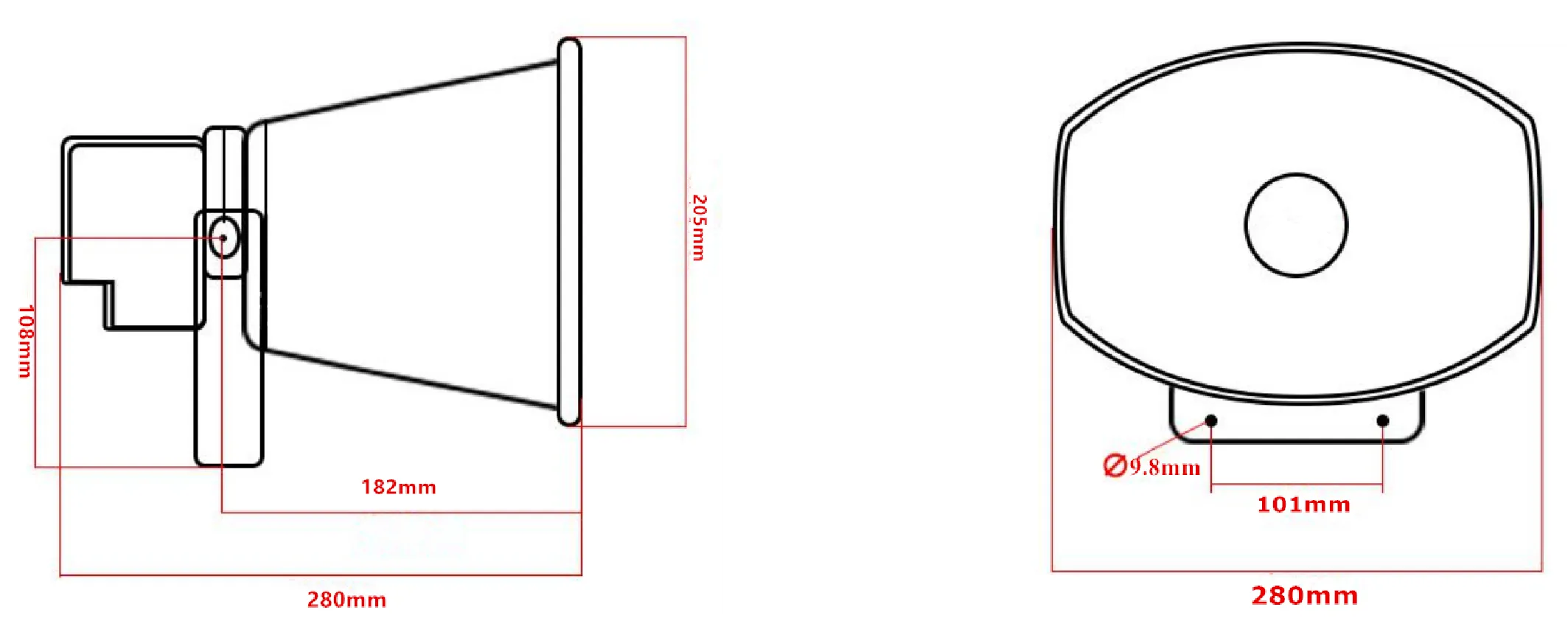

Dimensions
