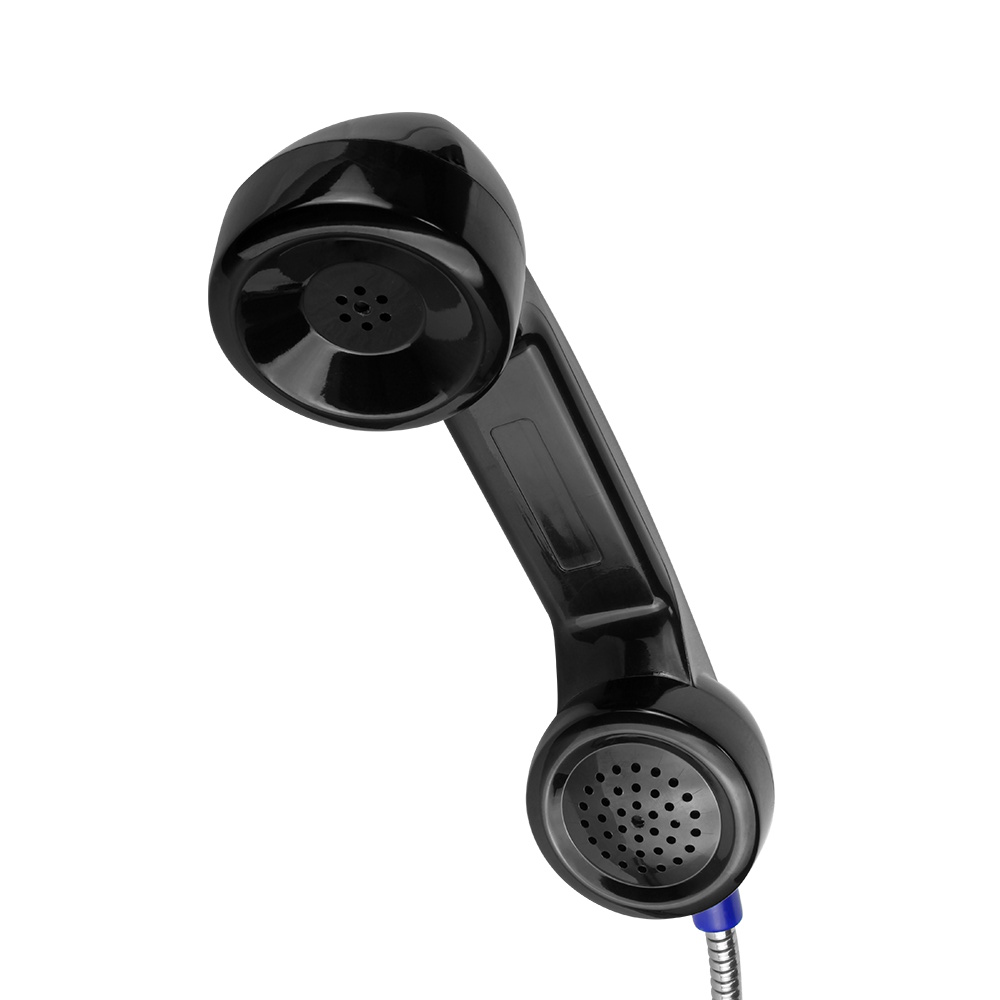

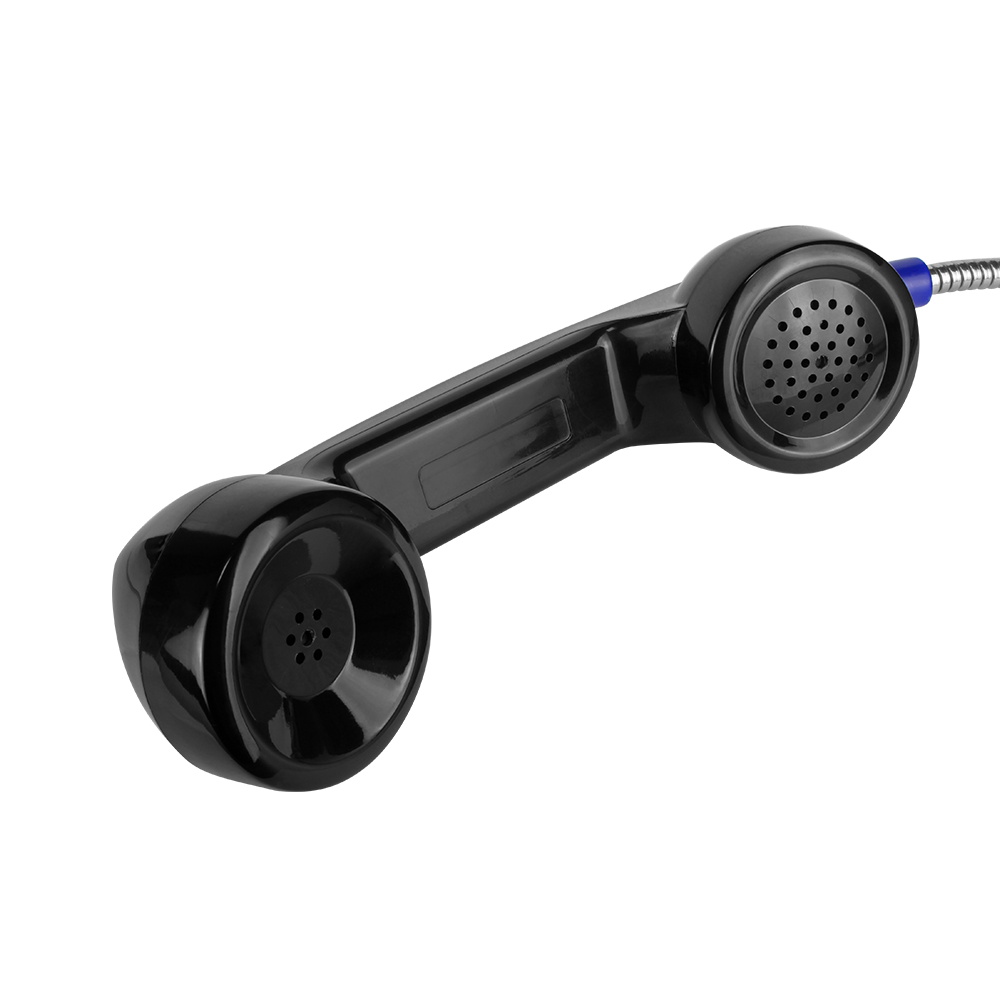

Armored Cord Handset JR-HS-01S for Anti-vandal Telephone

JR-HS-01S Armored Cord Handset

JR-HS-01S is a high quality PC or ABS material with stainless steel cord, good flexibility, excellent elasticity and tensile performance.

Get Pricing/info Download

Main Features

FEATURES of Rugged Handset with Armored Cord

- Handset handle and cap material: PC/ABS
- Handset type: Standard Receiver
- Wiring: Four 24 gauge Teflon insulated wires (2 for receiver, 2 for transmitter)

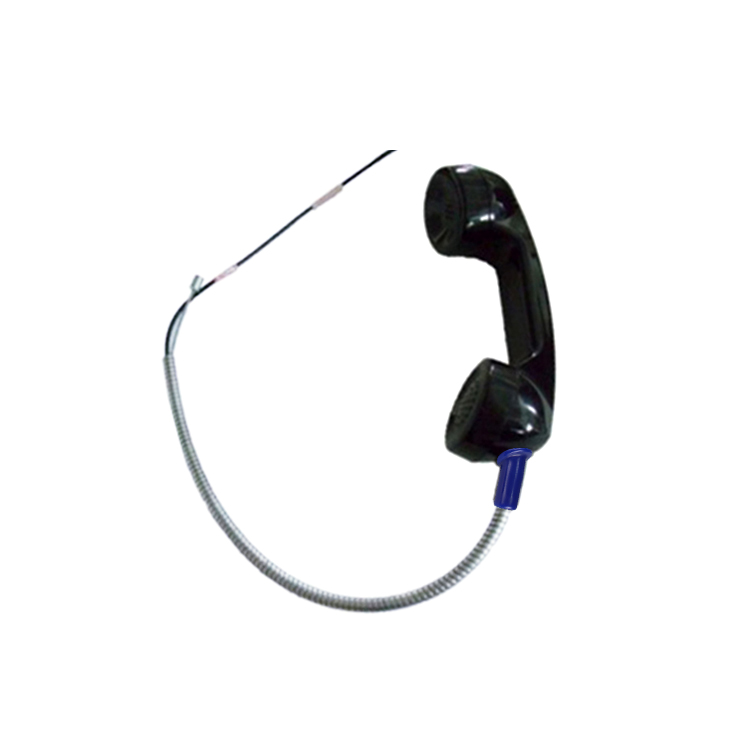

- Armored Cord Assembly.: 304 Stainless Steel
- Includes steel lanyard which is anchored to handset handle. Steel lanyard has a pull test load of approx. 200 kgs
- Available Cord Lengths: 83cm (could be customized)

Product Video

Technical Specifications

Handset Microphone specification

Item:	Electret Condenser Microphone
Model Number:	Microphone SG9070
Frequency range	100－8000Hz
Sensitivity	56±2 dB
Output Impedance	Low Impedance
Directivity	Unidirectional
Standard operation voltage	4.5V
Sensitivity reduction	Within -3dB at 1.5V
Current consumption	Max 0.5mA
Operation Temperature	-30℃ to +70℃
Storage Temperature	-40℃ to +85℃
Weight	Less than 1.0g

Handset receiver specification

RECEIVER
Model Number:	R3518M150H
ITEMS	SPECIFICATIONS	CONDITIONS
IMPEDANCE	150 ± 20% ohm ( at 1 KHz,60mV input )
SOUND PRESSURE LEVEL	97 ± 3 dB SPL ( at 1 KHz, 0dBSPL = 20μPa ) Input 60mVrms, with B&K artificial ear 4153
INPUT POWER (NOM./MAX.)	0.03W /0.25W 0.03W / 0.25W
HARMONIC DISTORTION	≤5%	300＜f≤3400Hz
OPERATING TEMPERATURE	-30°C to +70°C
NET WEIGHT	APPROX. 35.0gram

Optional Accessories

No related content

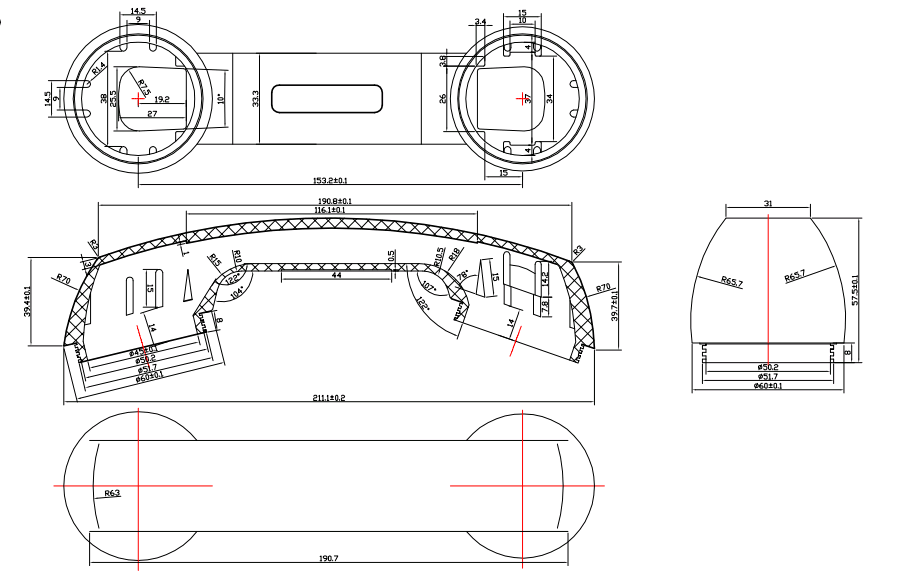

Dimensions
