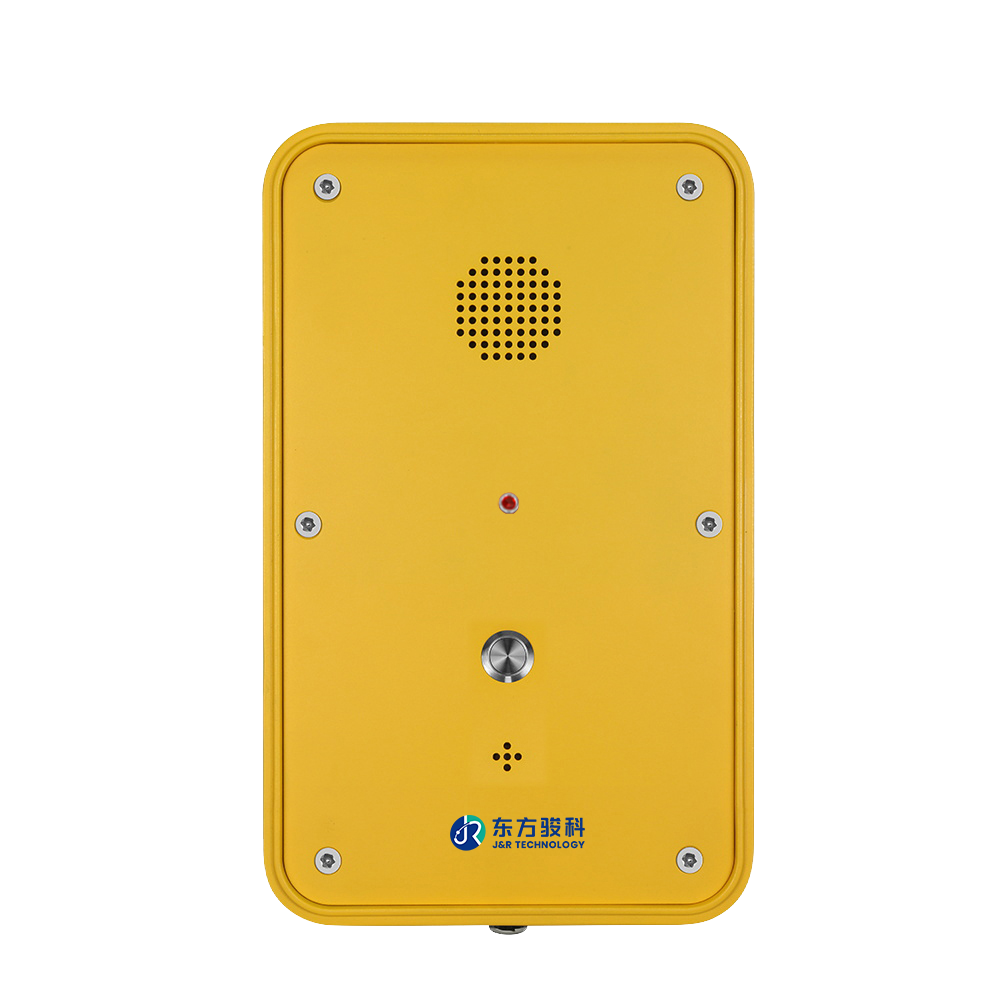

SOS Intercom JR104-SC-SIP

Aluminum alloy die-casting body
Protection level IP66/IP67
Advanced noise reduction technology for HD calls
Corrosion-resistant hardware
CE, FCC, RoHS, IK10, IP67, ISO9001 standards

Get Pricing/info Download

Main Features

IP66 Emergency Intercom JR104-SC-AL

Item Description

Hands-free telephone, one vandal resistant metal button for emergency call
With LED light, blinking when incoming call
Noise-cancelling microphone
Built-in 2W speaker
Magnetic reed hook switch to reduce wear-prone parts
Without door cover, supports wall mounting with mounting bar
Wiring access, 3xM20 cable gland entry points

Waterproof SOS Intercom Description

JR104-SC as a Waterproof SOS Intercom, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

Easy installation. The cable entrance is on the bottom of the phone to prevent from artificial damage, while the button is weather and vandal resistant.

Waterproof SOS Intercom Applications

This Waterproof SOS Intercom is very popular for Tunnels, Mining, Marine, Construction sites, Blast furnace areas, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants, oil&Gas station, and related heavy duty industrial rough environment conditions, etc.

IP66–67 Water Protection Grade

Die-cast aluminum alloy body with IP66/IP67 rating, IK10 impact resistance, and corrosion-resistant hardware, withstanding -40°C~75°C, dust, moisture and harsh conditions.

Superior Noise Reduction

Advanced noise reduction filters out ambient noise, ensuring clear on-site and dispatch communication.

Multi-scenario Adaptability

Fulfills on-site emergency communication and dispatching requirements across diverse operation scenarios.

Broadcast & Alarm Integration

Supports integration with external audible and visual alarm beacons for clear call alerts in noisy environments.

Applications

IP telephony system is an efficient and convenient communication solution that uses Internet connection to implement voice calls and other communication services. Compared with traditional telephone systems, IP telephone system has higher efficiency and conve- nience.

JR104-SC-SIP APPLICATIONS

Product Video

Technical Specifications

SIP Specifications
Power supply	PoE powered or 12V DC powered
Power adapter	100~240VAC 50~60Hz / 12V DC
Power consumption	Idle 1W / Working 2.4W
SIP protocol	SIP 2.0 (RFC3261)
Network port parameters	WAN Port: 10/100Base- T RJ-45 for LAN, Auto MDIX，LAN Port: 10/100Base- T RJ-45 for PC, Auto MDIX
Voice coders	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication mode	Full duplex
Ringing volume	90~95 dB (A) @ 1 meter
Technical Specifications
Compatible with most SIP-based IP-PBX servers that comply with SIP RFC 3261
PoE 802.3af enabled (Power-over-Ethernet) or alternate power source
PoE power supply, supports connecting the external loudspeakers (No external power supply needed)
Supports automatic switching between primary and backup servers
Supports remote Telnet debugging
Supports two relays to remotely control external devices
Operating temperature -40˚C to 65˚C / Storage temperature -40°C to 75°C
M.T.B.F. exceeds 50,000 hours under normal operating conditions
Network Web Management
Fully configurable through any internet browser
Static IP address provisioning or DHCP support
Product self-diagnostic testing available through the web interface
Network-adjustable earpiece volume and microphone sensitivity
Firmware upload via web interface
Echo cancellation: Supports G.168, and hands-free can support 96ms
Supports SIP domain, SIP authentication (none, basic, MD5), and DNS name of server
DTMF: SIPINFO, INBAND, RFC2833
Dials Plan: Flexible dial-up configuration, support hotline
Network Features
WAN/LAN: Supports Bridge mode
Supports static IP address
Supports DHCP to obtain an IP adress on WAN port
Supports VLAN
Supports web config
Data Protocols: IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, ONVIF, SNMPv1, RTCP-XR, 802.1x, Static IP/DHCP IP Assignment,IEEE 802.1p/Q, QoS/ToS, HTTP/HTTPS/DHCP, NTP, FTP/TFTP, CDP/LLDP VLAN Configuration, LDAP
