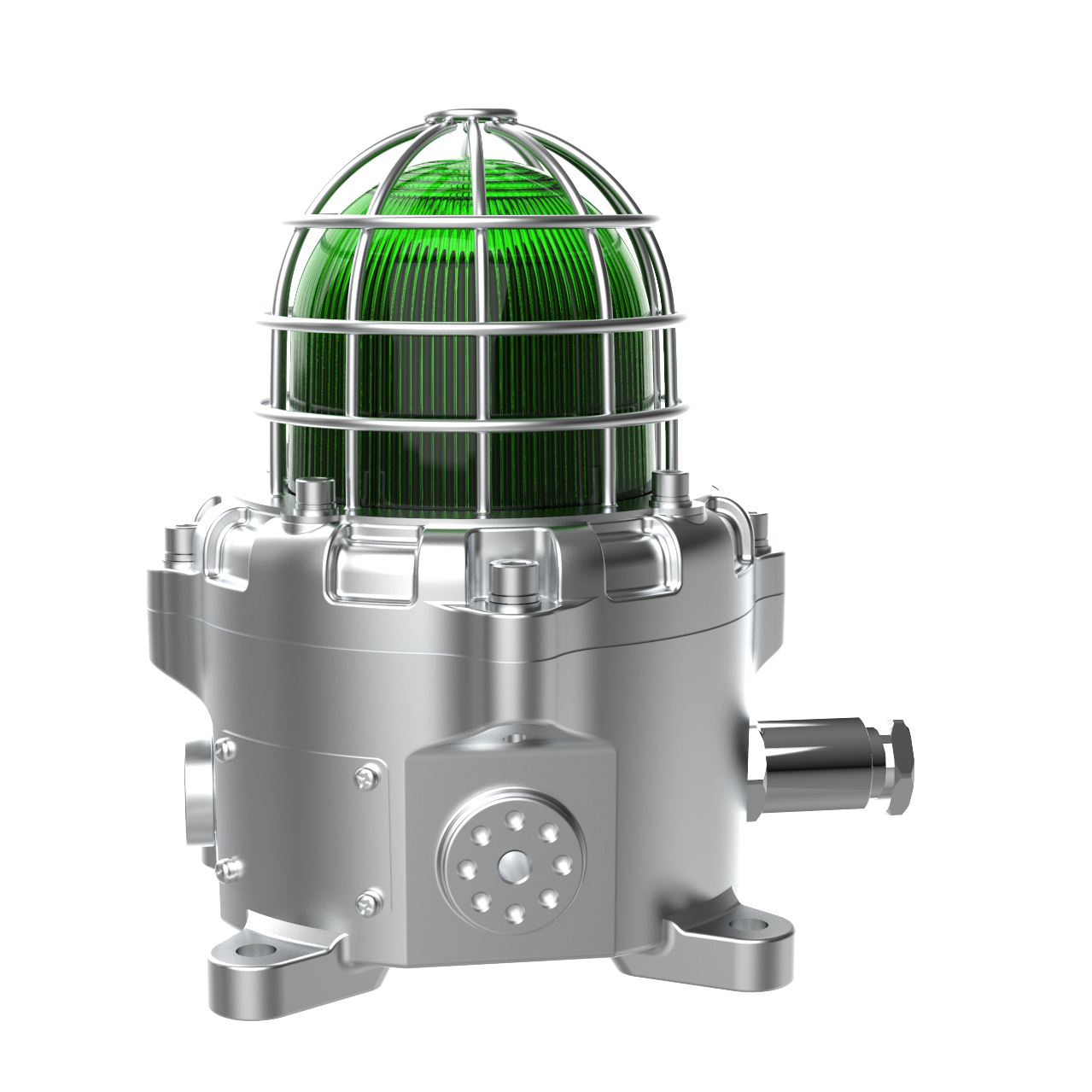

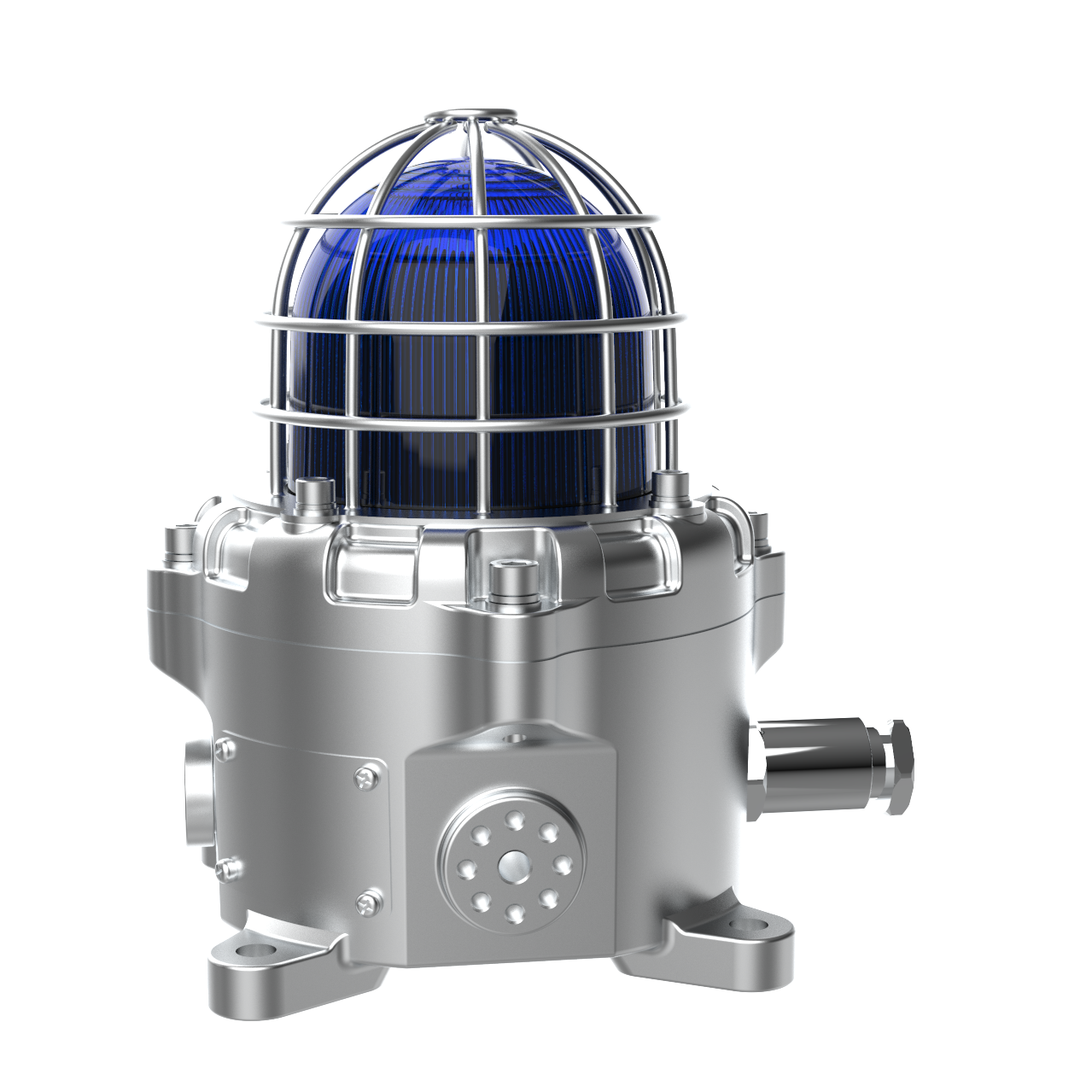

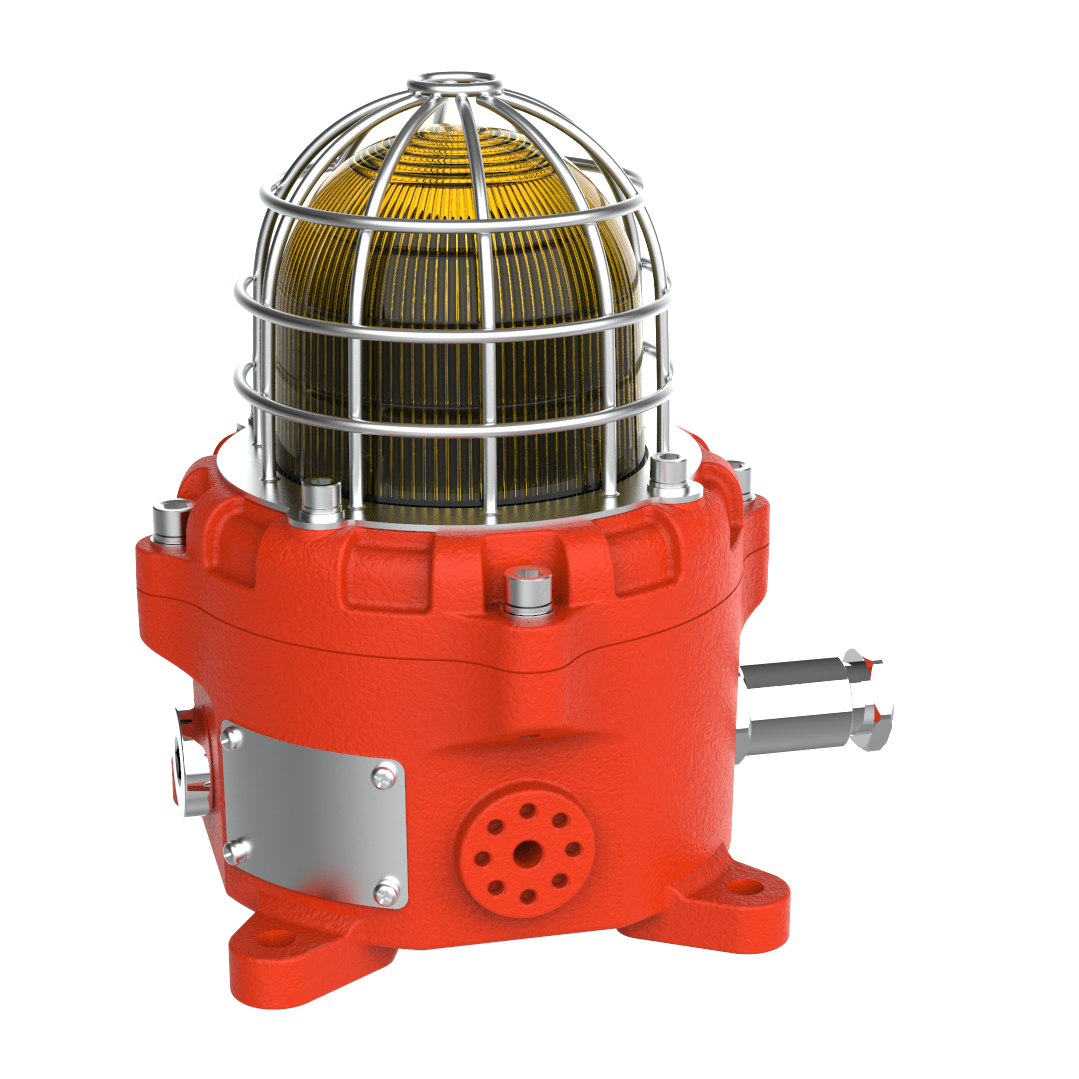

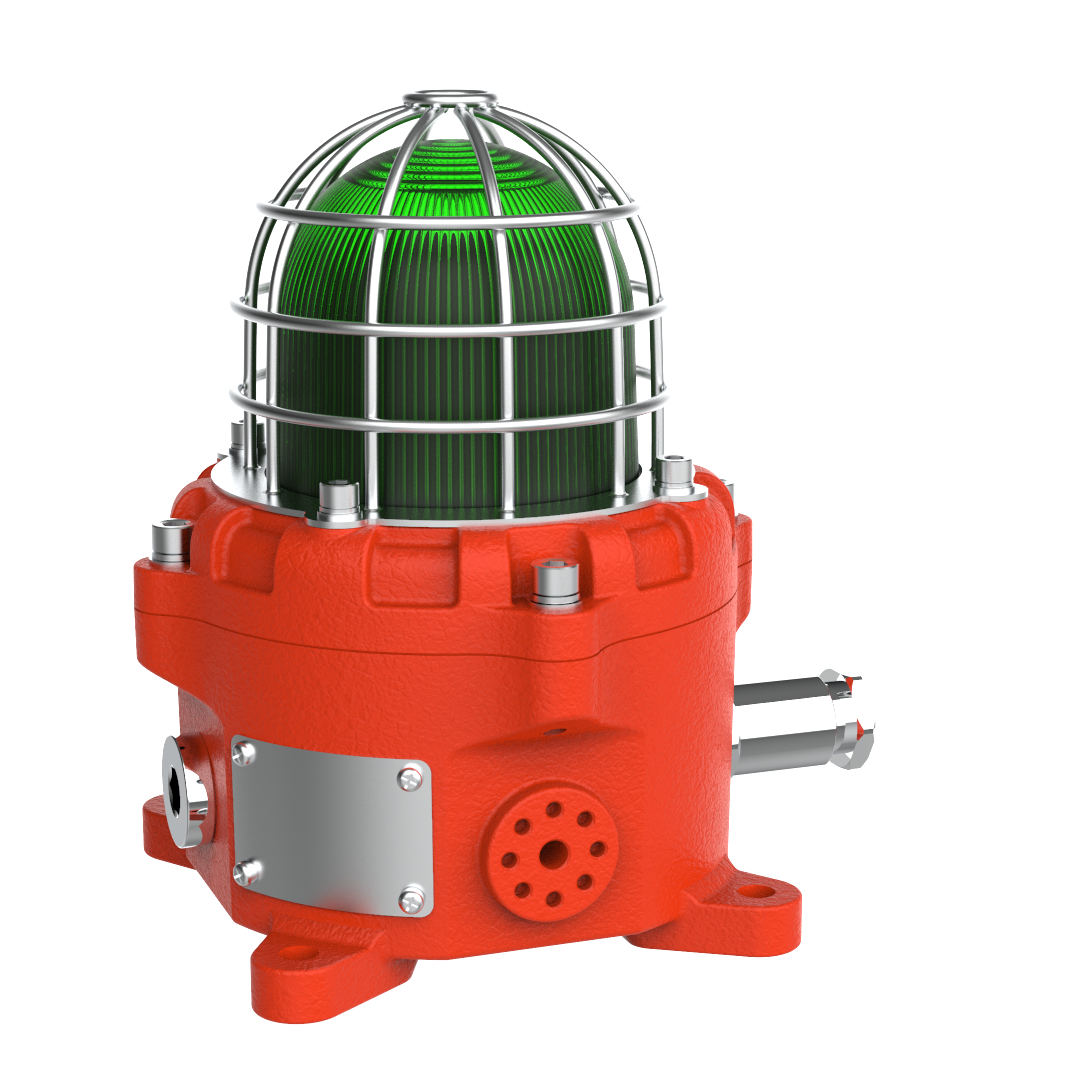

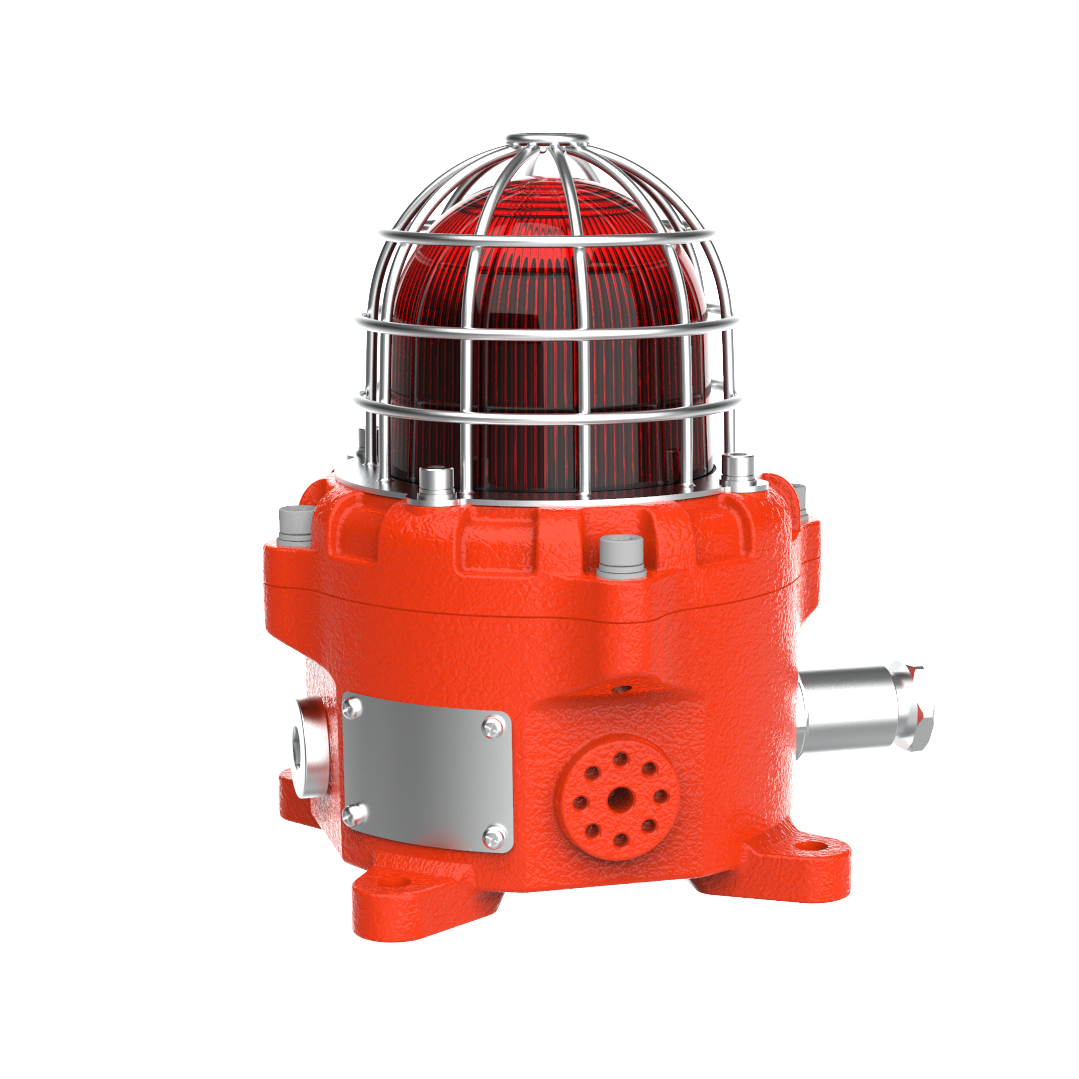

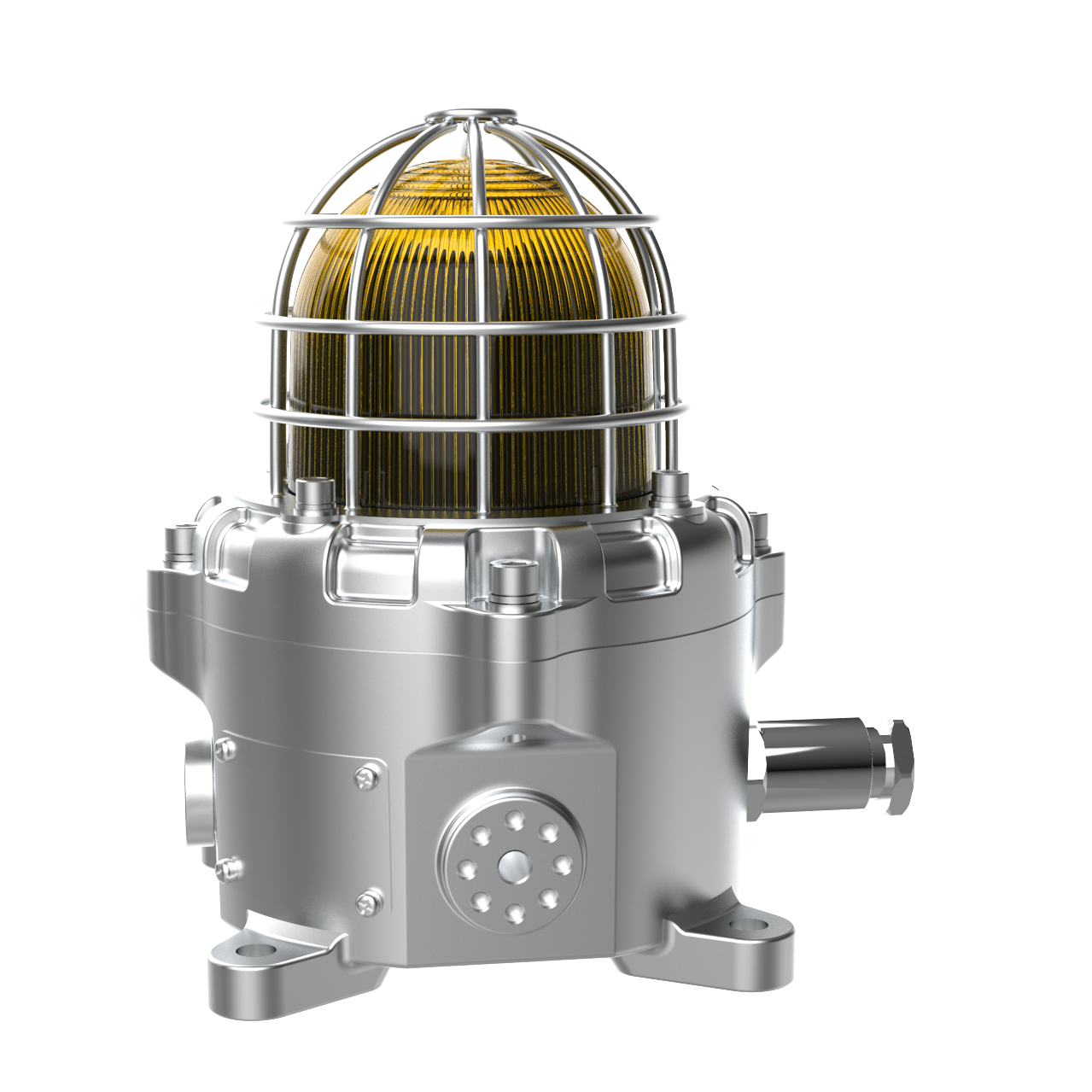

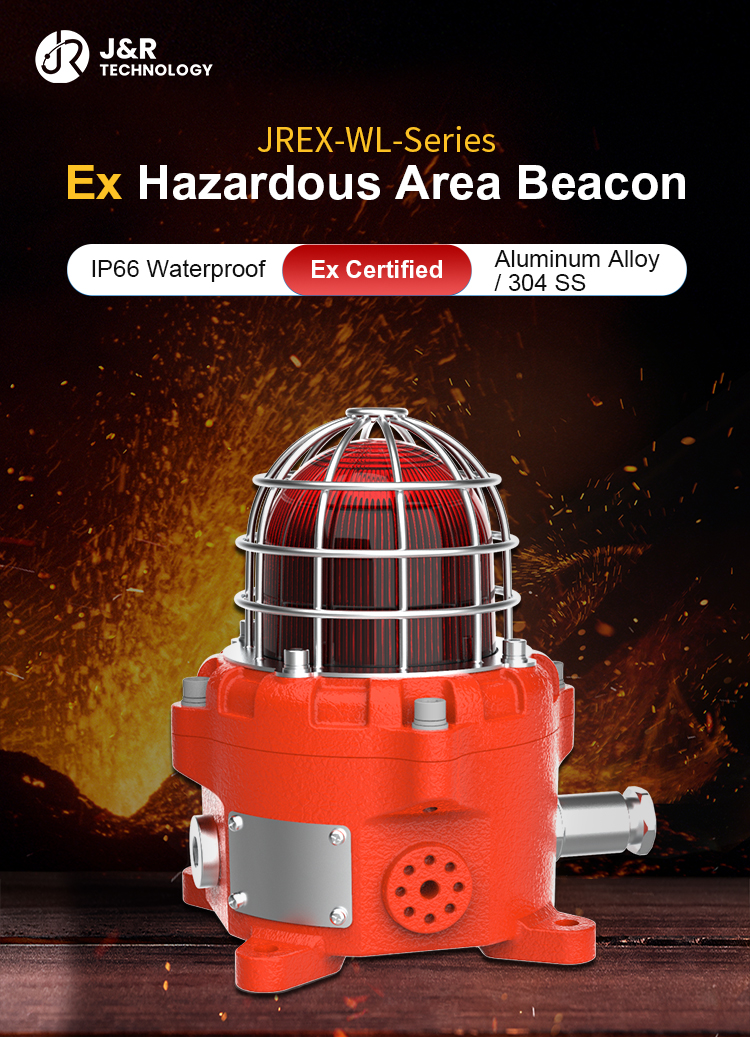

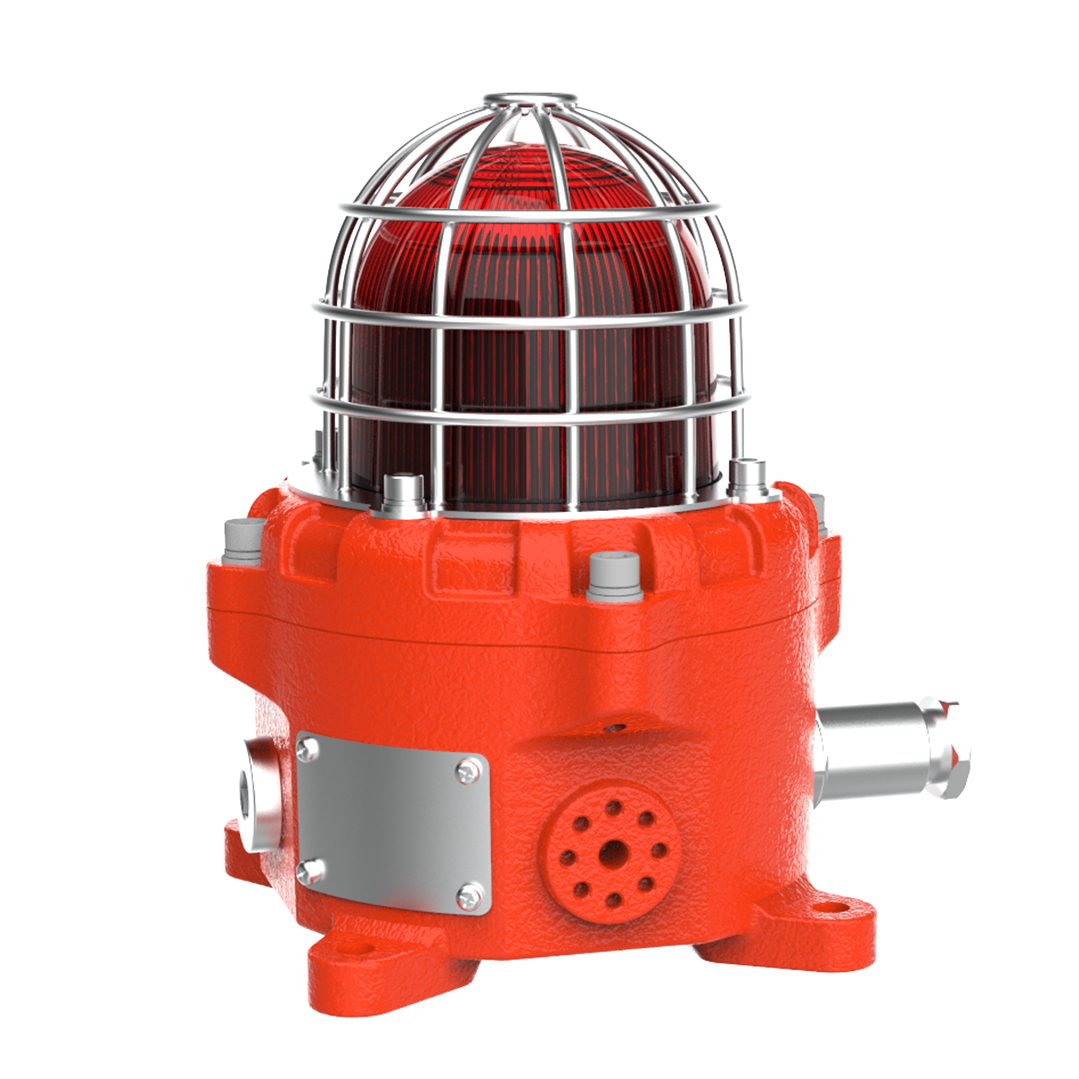

Explosion Proof Beacon JREX-WL

  • The Explosion-proof Beacon can be used as an additional signal device for explosion-proof telephone systems, gas detectors systems, and safety alarm systems. It is also suitable for use in public broadcast warning or alarm systems, and can function alone as a special warning light or aviation obstruction light.
  • It is ideal for applications in industries such as petroleum and petrochemical, electricity, nuclear power, natural gas, chemical industry, refineries, port ships, aircraft routes, oil drilling platforms, and marine facilities.
Get Pricing/info Download

Main Features

  • With LED long-on, flashing, rotating and xenon flashing functions
  • With light sensor switch function (light level can be set)
  • ABS material for lamp cover, corrosion-resistant, high temperature resistant
  • Aluminum alloy or stainless steel housing, capable of withstanding strong impacts and collisions
  • Easy to install, maintain, and configure parameters on site；easy to replace the lamp head

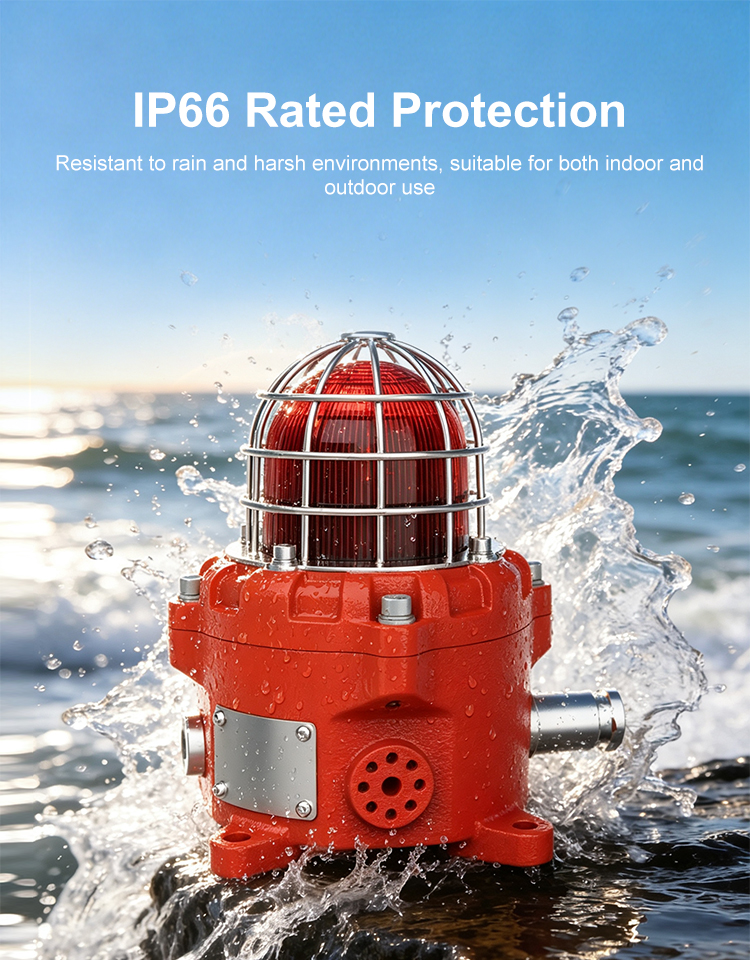

  • Protection rating IP66
  • ATEX, IECEx explosion-proof certification

Explosion-proof standard

Ex d ib llC T6 Gb/Ex tD A21 IP66 T80℃

Product Video

Technical Specifications

Operating voltage DC12V
Power frequency 50Hz-60Hz
Power consumption 10W
    1Hz flash (60 fpm)
    1.5Hz flash (90 fpm)
  LED reflector rotating type; Rotation speed: 120-140 RPM 2Hz flash (120 fpm)
    Double strike flash 50ms on, 150ms off x
Light source   2, 600ms off

(optional)   Triple strike flash 150ms on, 150ms off x
3, 600ms off
  LED flashing & strobe type (Power: 5W, 10W) High Power Steady
    Low Power Steady
    LED service life ≥ 60,000 hours
  Xenon strobe type (Power: 5J, 10J, 15J, 20J) 1Hz flash (60 fpm)
Warning mode Rotating beacon
Housing material Aluminum alloy or SUS304 stainless steel Optional
LED lamp cover ABS


—
Protection rating IP66
Operating temperature -30℃ ~ 70℃
Operating humidity 10% ~ 95% RH (Non-condensing)
Product Dimensions: 149* 149* 188.35 mm, Packaged in carton box

Optional Accessories

No related content

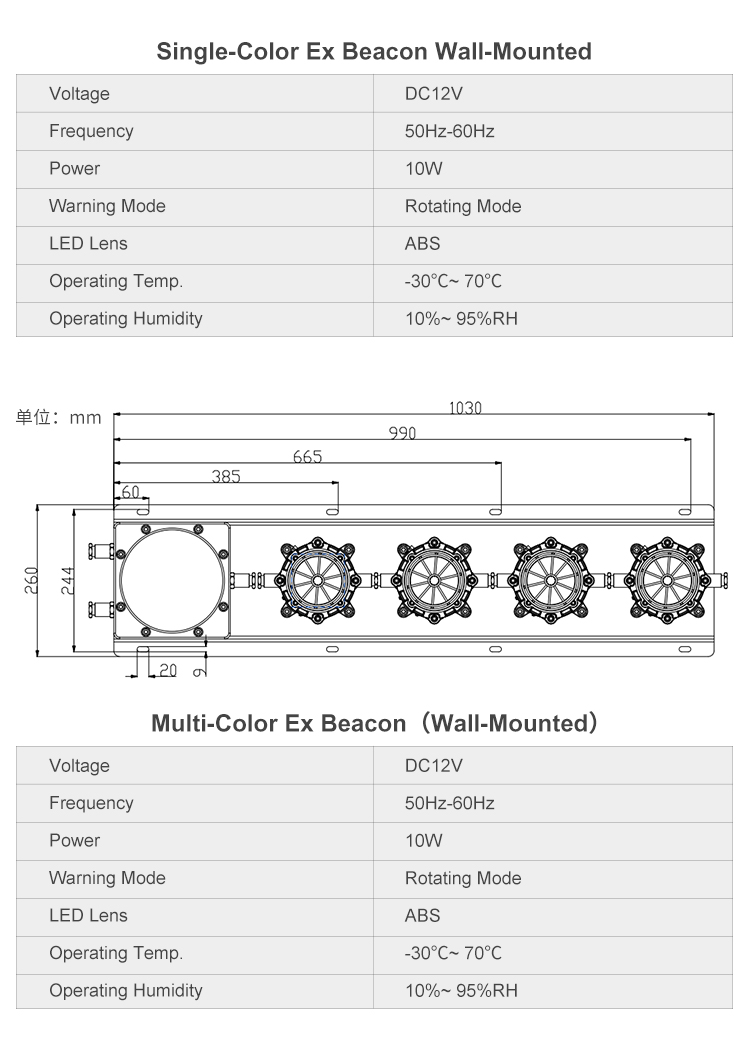

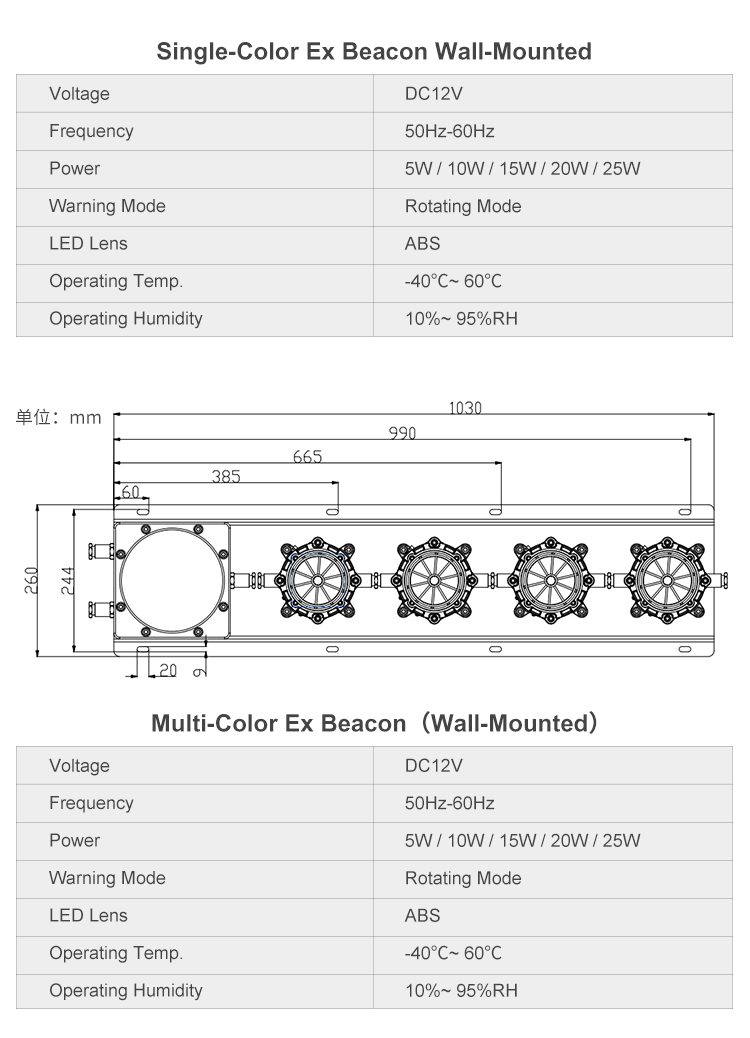

Dimensions

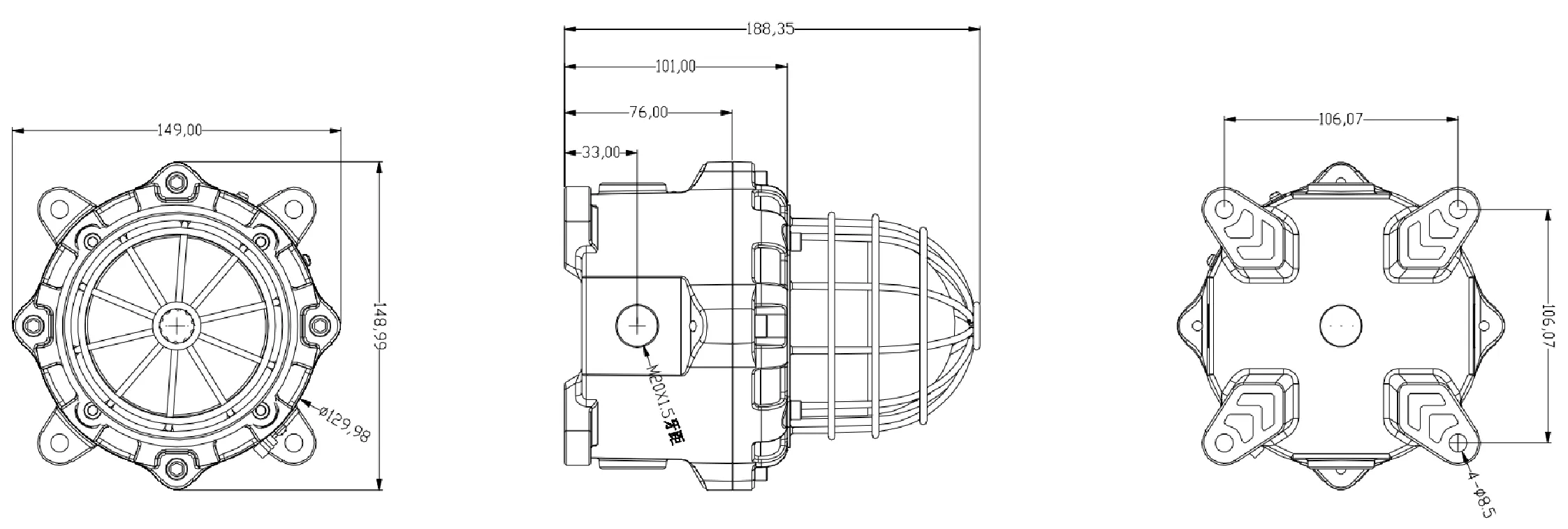

Explosion Proof Beacon JREX-WL Dimensions

Product Recommendations

JREX-HSA-SIP Explosion-proof Horn

JREX-HSA-SIP Explosion-proof Horn

JREX-HSA explosion-proof loudspeaker is an explosion-proof horn loudspeaker suitable for inflammable and explosive places.

View details

JREX-HSA-Analog Explosion-proof Horn

JREX-HSA-Analog Explosion-proof Horn

JREX-HSA explosion-proof loudspeaker is an explosion-proof horn loudspeaker suitable for inflammable and explosive places. It can be used with various power amplifiers and sound amplification equipment.

View details

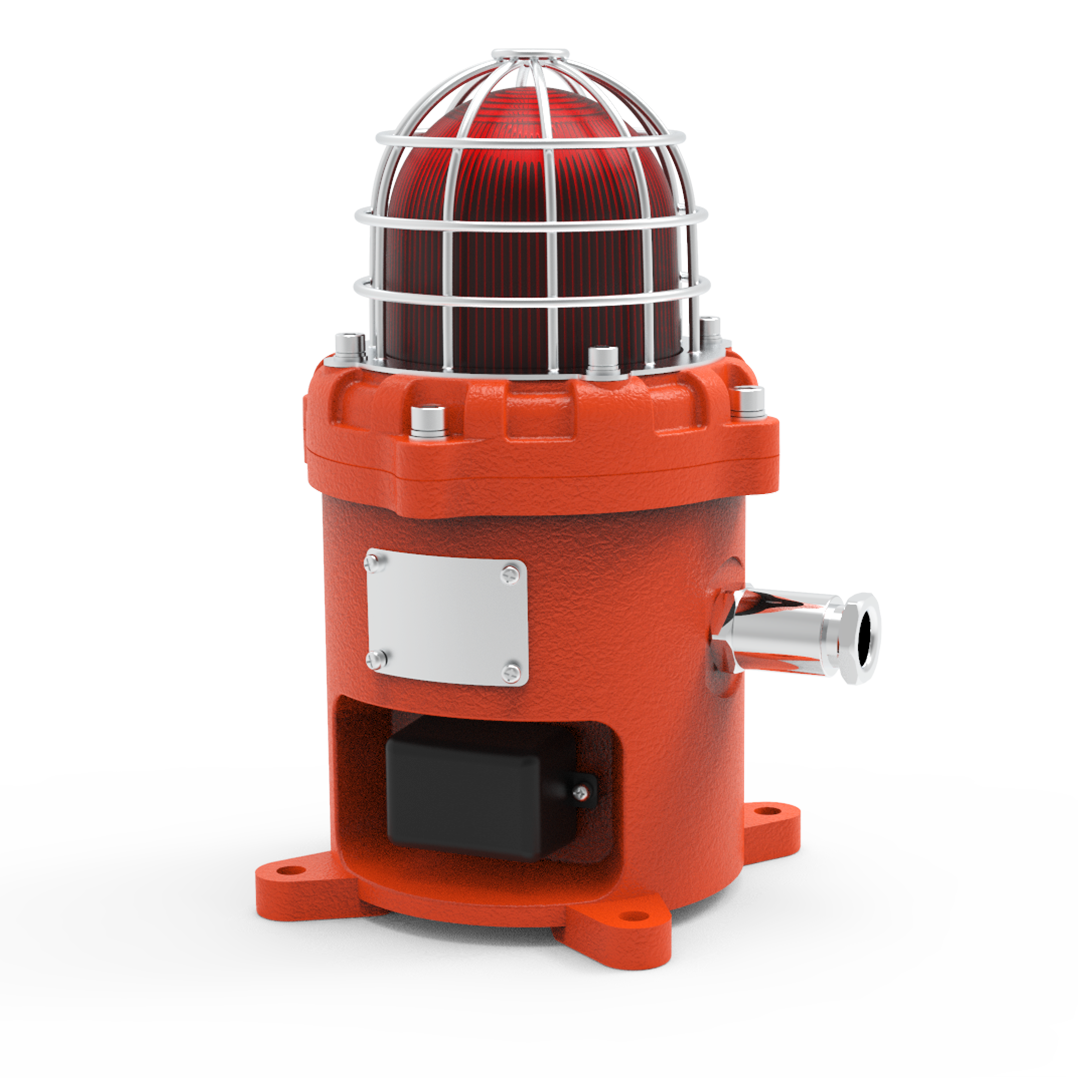

JREX-SL Explosion-proof Audible and Visual Alarm
