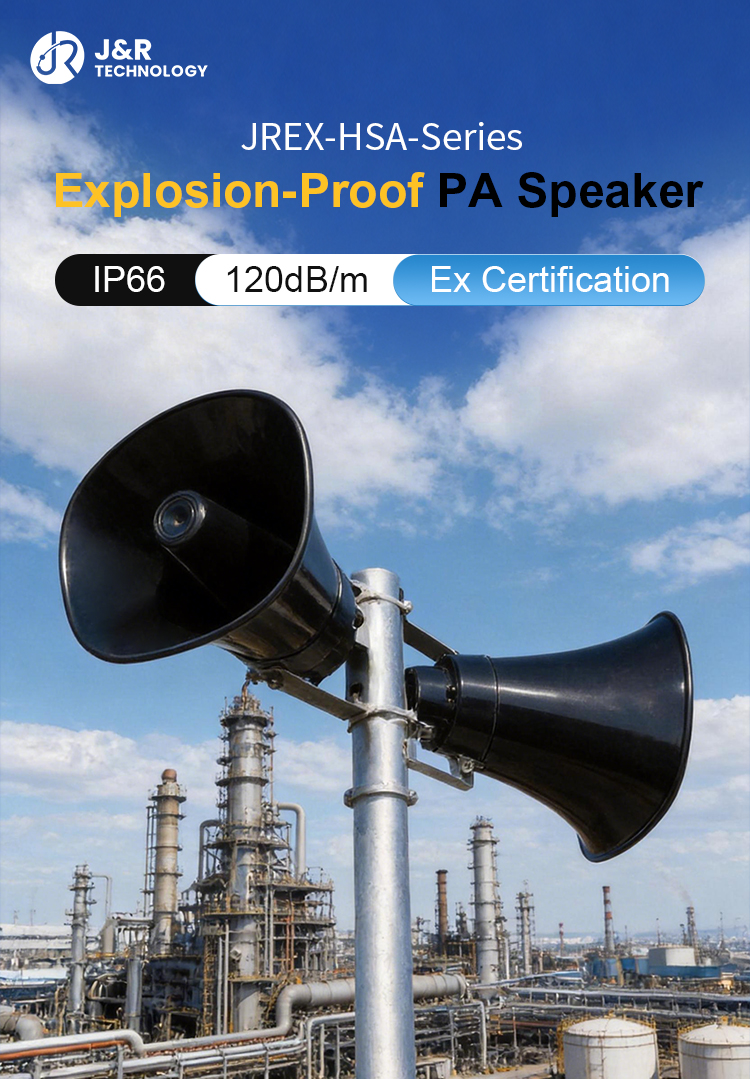

JREX-HSA

  • Explosion proof speaker designed and approved by ATEX, IECEx, CE, FCC and RoHs standards
  • Material: Anti-static ABS for housing, stainless steel (options aluminium alloy) for base and fixing bracket
  • Rated resistance or Constant voltage type for speakers (Optional)

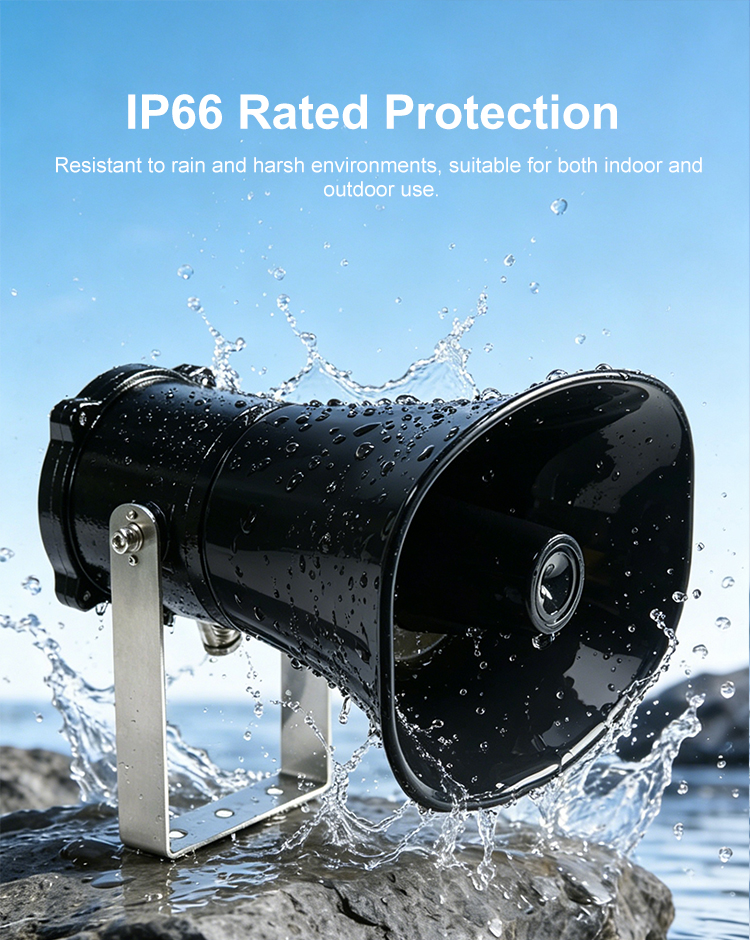

  • Weather proof rating for IP66
  • Wall mounted for installation
  • Operation temperature: -40°C ~ +65°C
Get Pricing/info Download

Main Features









Product Video

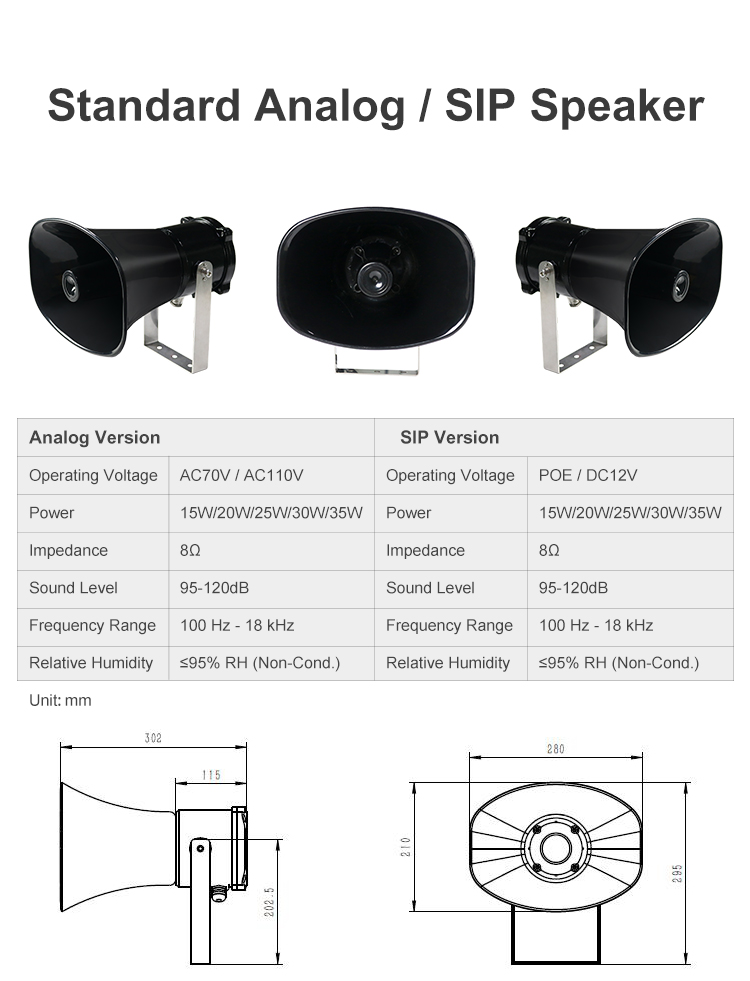

Technical Specifications

SIP Analog
Power supply POE / DC12V Audio signal voltage AC70V, AC110V

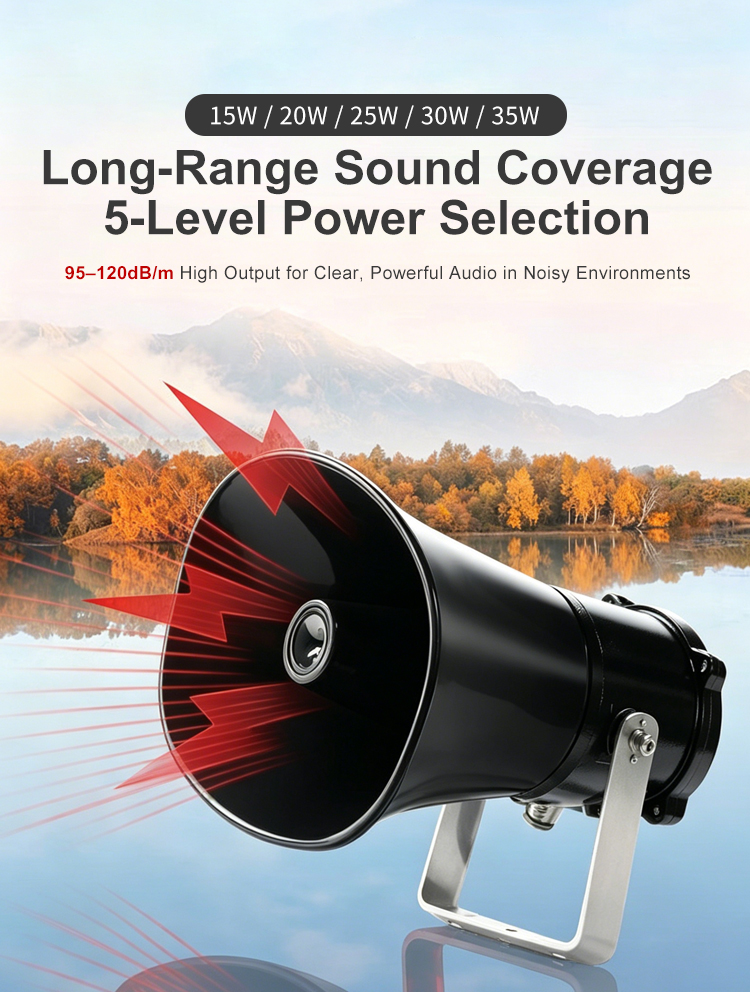

Power 15W, 20W, 25W, 30W, 35W Power 15W, 20W, 25W, 30W, 35W
Impedance 8Ω Impedance 8Ω
Effective frequency range 250Hz~5000Hz Effective frequency range 250Hz~15000Hz
Sound level 105~115dB Sound level 110~120dB
Relative humidity ≤95% without condensation Relative humidity ≤95% without condensation
Atmospheric pressure 80kPa~110kPa Atmospheric pressure 80kPa~110kPa
Outlet thread M20*1.5 Outlet thread M20*1.5

Optional Accessories

No related content

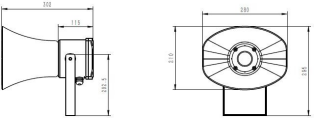

Dimensions
