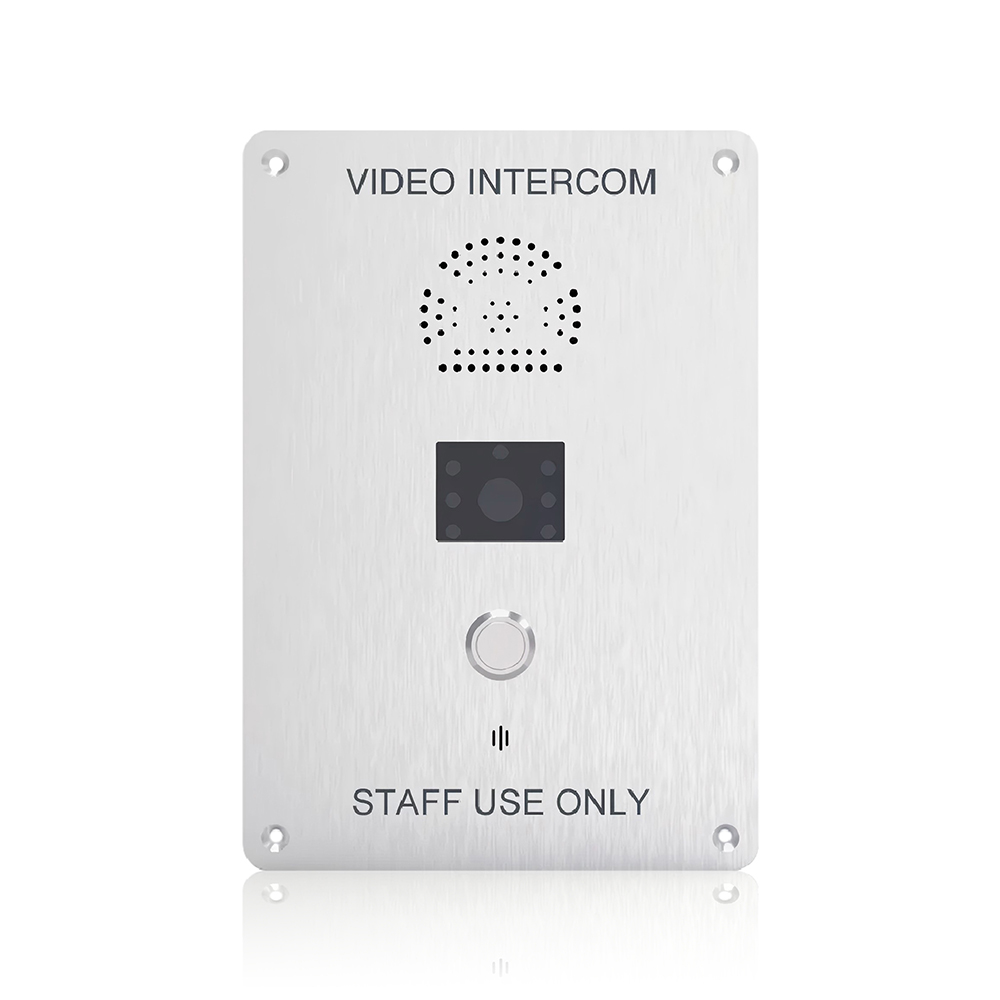

Emergency Intercom JR301-SC-C-IW-SIP

  • 304 Stainless Steel body (SS316 available upon request)
  • IP55-IP65 Waterproof rating
  • Advanced noise reduction technology for HD calls
  • Corrosion-resistant hardware
  • CE, FCC, RoHS, IK10, IP65, ISO9001 standards
Get Pricing/info Download

Main Features

The IP video help point with a built-in camera is designed to meet the needs of client who experience loss through vandalism. Ideal for metro/railway platforms, parking lots, hospitals, police stations, ATMs, stadiums, outdoor buildings or public areas etc

Housed in Brushed Stainless Steel and manufactured to high standards, these telephones offer enhancedresistance to vandalism and ensure reliable communication at all times.

Additionally, this series of phones has been tested in salt spray and is highly durable in humid and corrosive environments. Extremely easy to install, the cable entrance is located at the back of the phone to prevent artificial damage.


  • Hands-free operation with a single vandal-resistant metal button for emergency calls
  • With customized screen printing design on the phone panel
  • HD camera
  • Noise-cancelling microphone
  • Built-in 2W speaker
  • Flush mounted design with tamper-proof screws

Applications

IP telephony system is an efficient and convenient communication solution that uses Internet connection to implement voice calls and other communication services. Compared with traditional telephone systems, IP telephone system has higher efficiency and conve- nience.

JR301-SC-C-IW-SIP APPLICATIONS

Product Video

Technical Specifications

SIP
Power supply PoE powered or 12V DC powered
Power adapter 100~240VAC 50~60Hz / 12V DC
Power consumption 8W
SIP protocol SIP 2.0 (RFC3261)
Network port parameters WAN Port: 10/100Base- T RJ-45 for LAN, Auto MDIX，LAN Port: 10/100Base- T RJ-45 for PC, Auto MDIX
Communication mode Full duplex
Ringing volume 90~95 dB (A) @ 1 meter
SIP Protocol
GSM/PCMU/PCMA/OPUS G.7211-16000/G.7211-32000/G.729/G.723
Speex-16000/8000/32000 ISAC-16000/32000
AMR/ILBC SILK-8000/12000/16000/24000
CODEC2 H.263-1998/VP8/H.264
Specification
Supports DHCP get IP on WAN port
Supports configuration by web interface
Supports echo cancellation
Connectors, cat5e or better
The video support H.264, H.263 encoding
Flexible hardware design, rich peripheral interface
Heat dissipation 32 BTU/Hr CPU Quad-core ARM cortex A17 CPU@1.8GHz
Operating system Android 5.1 USB interface Micro usb OTG2.0
RAM: LPDDR3 1G ROM: EMMC 8G RJ45 interface IEE802.3af
HDMI V2.0 and support 4K HD output Induction loop Effective distance 60~120 cm
Speaker 8Ω 2W Operating: -30°C to +65°C Storing: -40°C to +75°C
Camera Specifications
Photosensitive film OV9732 (1/4”) The most effective pixel 1280 (H) *720 (V)
Sensitivity 600mV/Lux-sec Pixel size 3µm x3µm
Image area 3888µmx2208µm Interface type USB2.0 High Speed
Light board power supply interface Support 2P-2.0mm socket Power supply and interface USB BUS POWER
Lens specifications size: 1/4, Iris: F2.5, Focus: 2.5mm, FOV: 80Degree
The system supports: Win XP/Vista/Win7/Win8 / Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

Installations and Applications

Metro

Metro

Airport

Airport

Platform

Platform

Business center

Business center

Clean room

Clean room

Hospital

Hospital

Bank

Bank

School

School

Dimensions

JR301-SC-C-IW-SIP Dimensions
Package
Unit size 230*160*55 (mm)
Shipping dimensions 340*235*165 (mm)
Packaging materials Foam padding, carton
Weight Gross weight: 3 kg / Net weight: 2.8 kg
