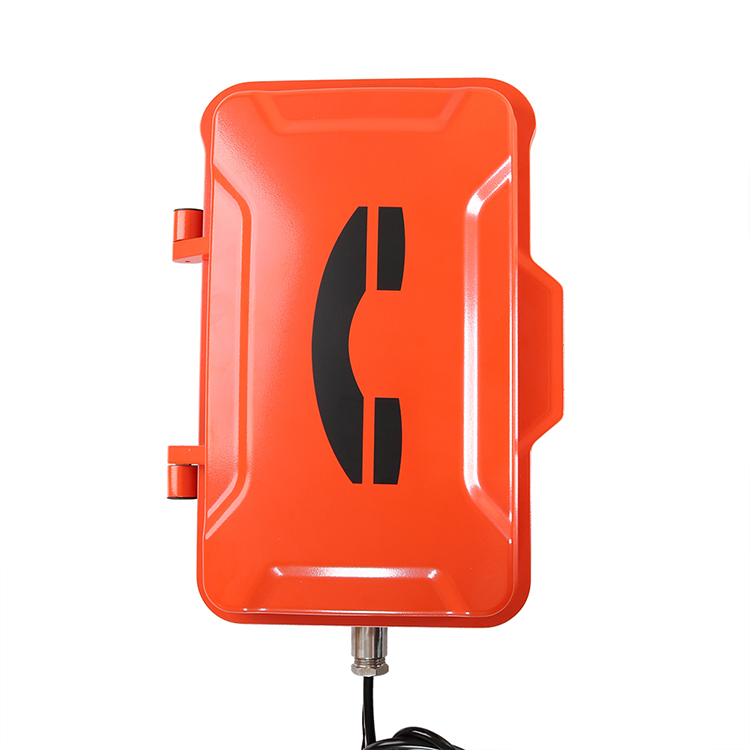

Analogue Outdoor Explosion-proof Telephones JREX106-A01-AL

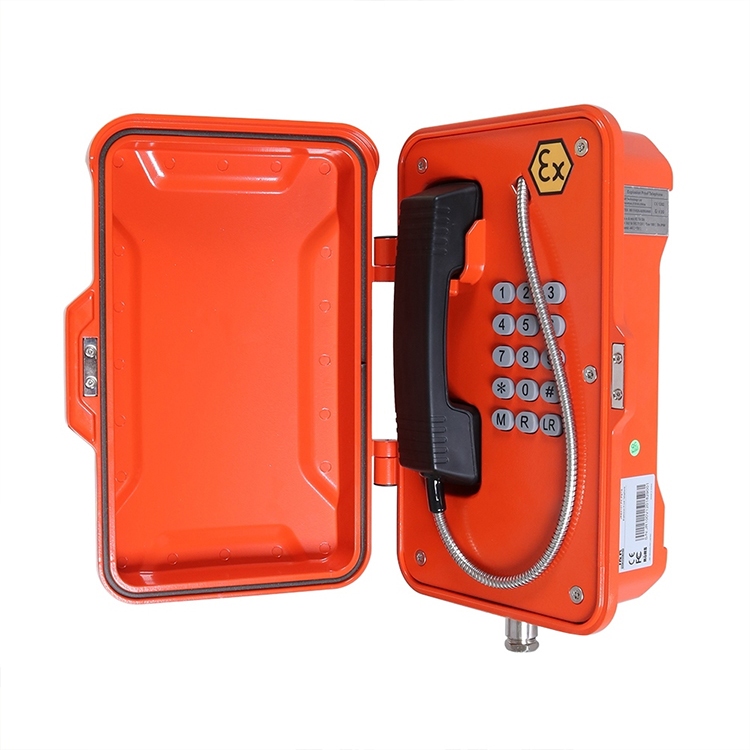

Explosion Proof Telephone JREX106-A01-AL

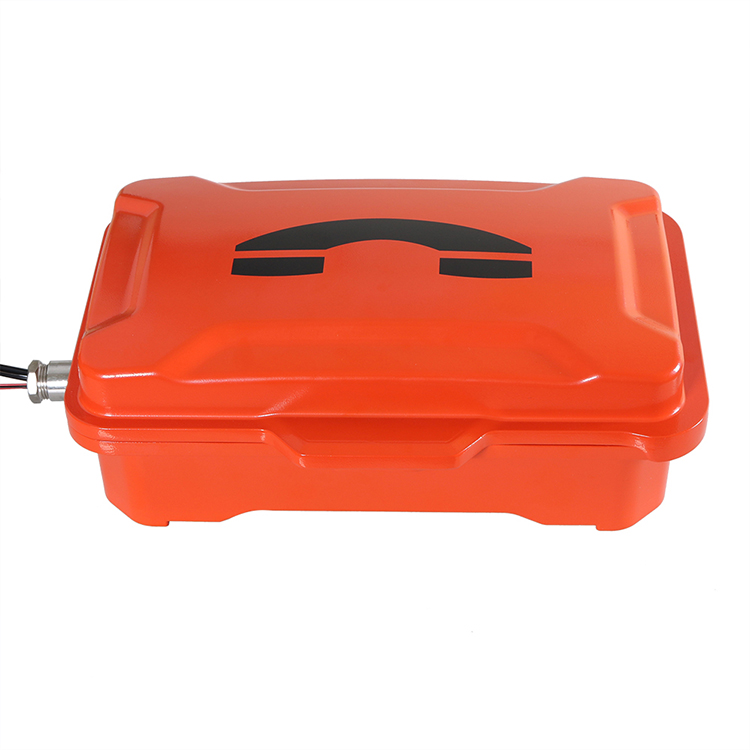

Aluminum alloy die-casting body
Protection level IP66 according to lEC60529
Advanced noise reduction technology for HD calls
Supports 10 groups of speed dialing
It is ATEX, IECEx, EAC and INMETRO standards

Get Pricing/info Download

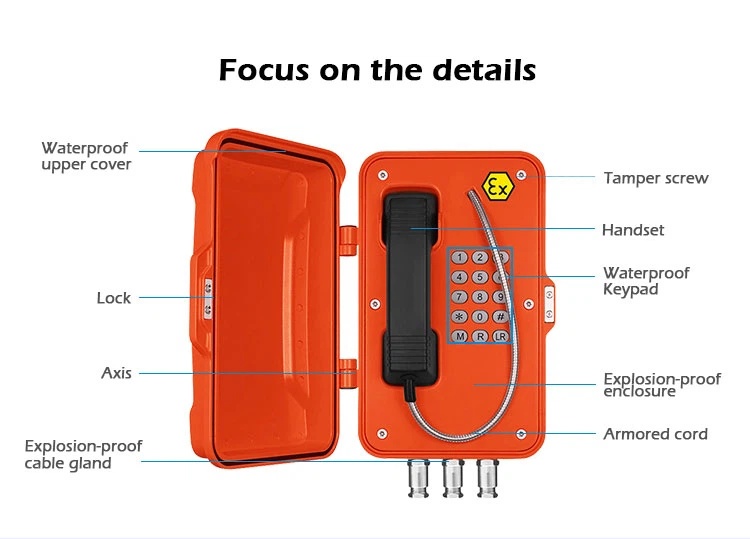

Main Features

Analogue Outdoor Explosion-proof Telephones JREX106-A01-AL

Item Description

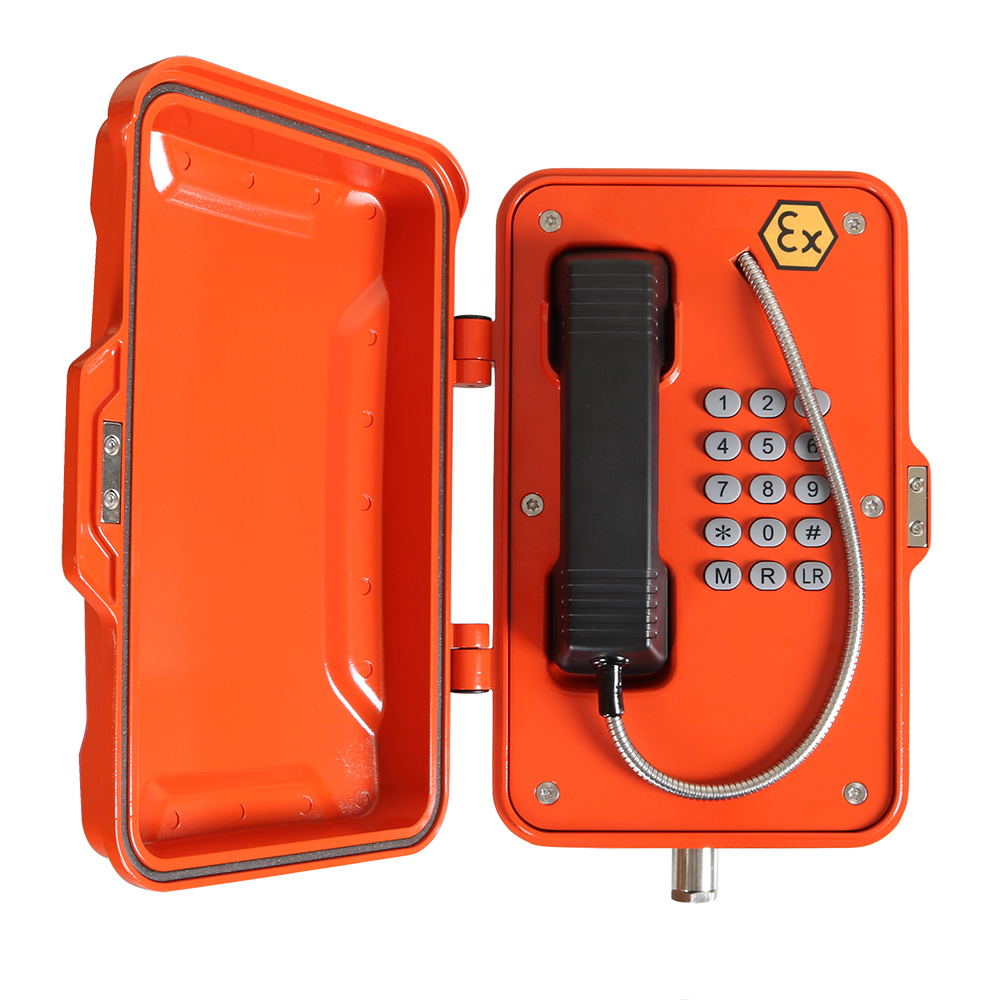

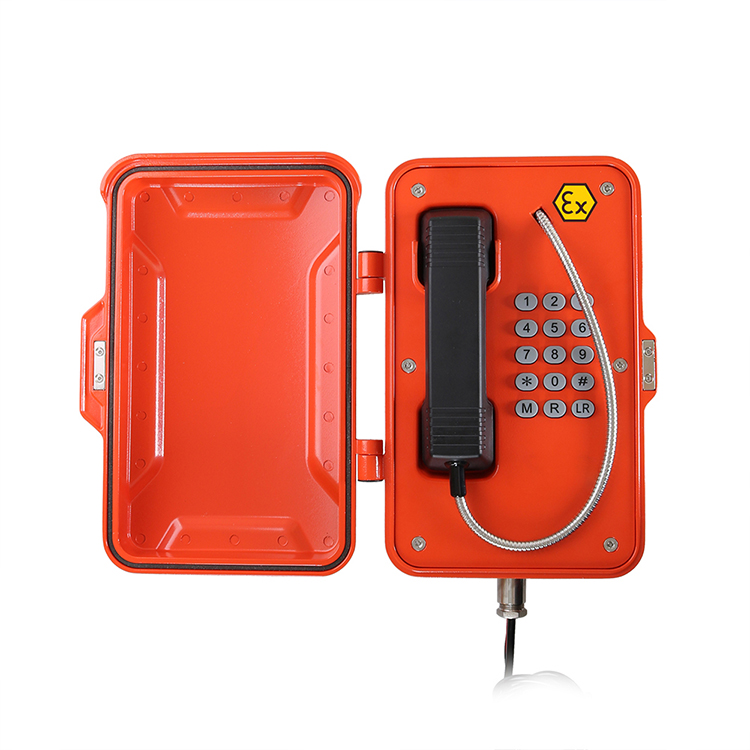

Full rubber keypad with memory, 0-9 buttons can be programmed as speed dial buttons
“M” for muting
“R” for flash recall
“LR” button for last number redial
Handset with noise-cancelling microphone and 42 cm armored cord (optional heavy duty curly cord)
The handset supports hearing aid compatibility (HAC)
Magnetic reed hook switch to reduce wear-prone parts

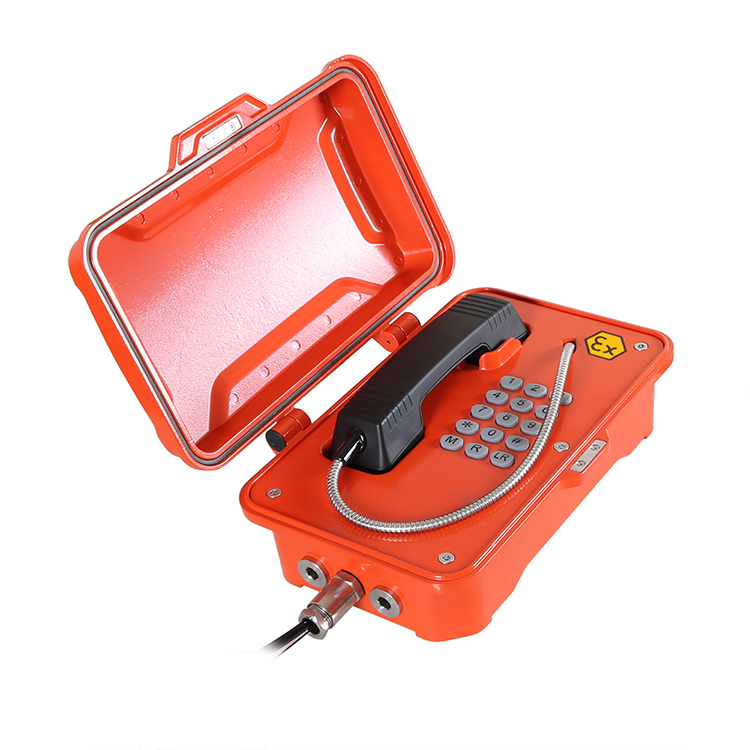

With door cover, supports wall mounting with mounting bar

Analogue Outdoor Explosion-proof Telephones Description

The Explosion Proof Telephone JREX106-A01-AL is designed for voice communication in the hostile enviornment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature difference found out-doors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.

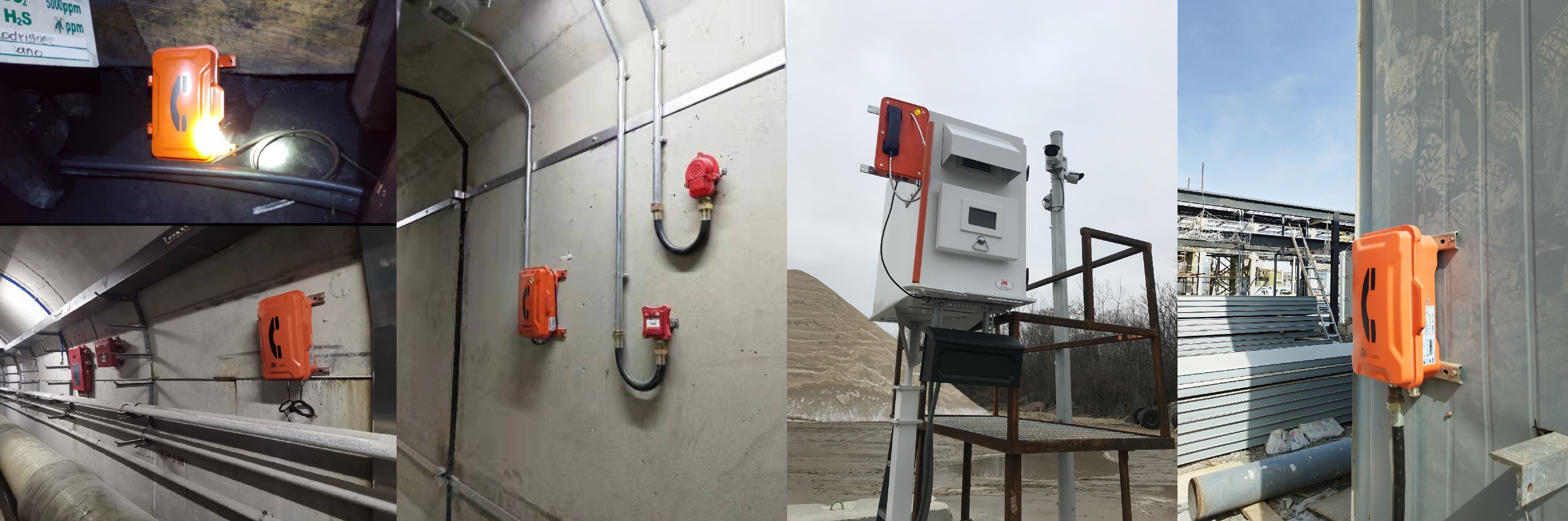

It's suitable for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.

Analogue Outdoor Explosion-proof Telephones Applications

This easy-to-use explosion proof telephone can be used in a variety of hazardous and demanding environments.

For communication in areas which may be hazardous due to the presence of flammable gases or vapors, and/or combustile dusts. In chemical and petrochemical plants, oil refineries, mines, offshore, power generation facilities, bulk loading stations,paint and vamish manufacturing plants, grain processing and similar industries. as well as mechanical wear and tear. Telephone is ideal for security and industrial applications, as well as emergency help.

Redefine Safe Communication in Hazardous Zones

Certified with the ATEX, IECEx, EAC and INMETRO, JREX106 series demonstrates compliance with:
Ex eb ib [ib Gb] mb IIC T6/T5 Gb
Ex ib [ib Db] tb IIIC T80℃/T95℃ Db
T6/T80℃: -40℃ to +40℃
T5/T95℃: -40℃ to +55℃
Zone 1,2, 22

Strong Anti-Interference

Features a noise-cancelling mic and G.168-compliant echo cancellation, delivering crisp, stable communication in high-interference sites.

Special Application Fields

Their rugged design meets industrial requirements as well as Zone 1, 2, 21, 22 operation in Oil & Gas, petrochemical industry, mining, marine, oil refinery, power plant, onshore/offshore...

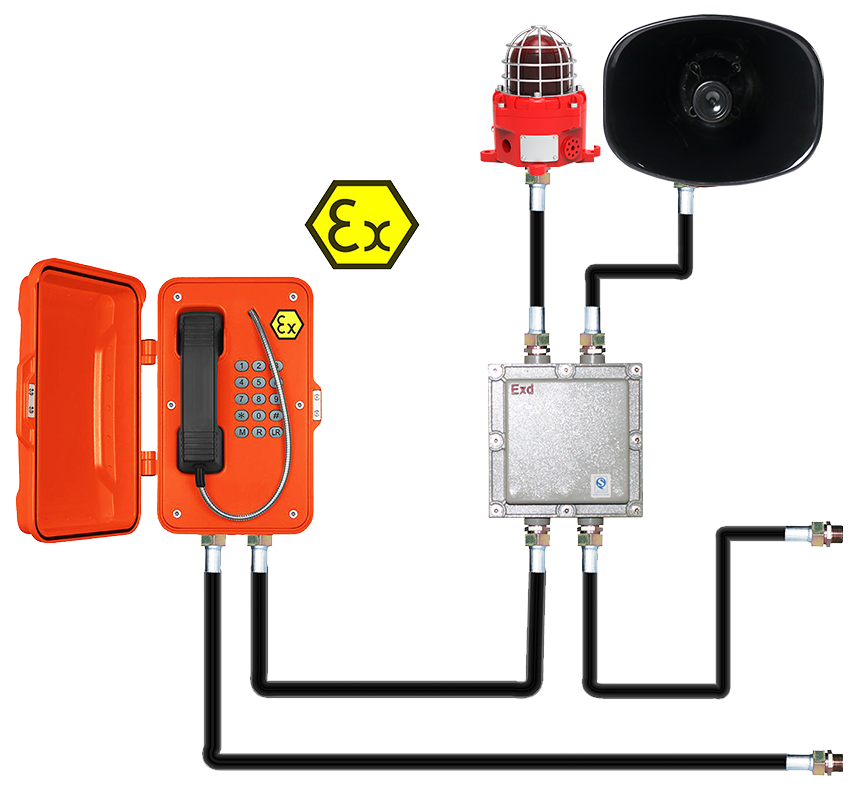

ATEX Audible and Visual Alarm Integration

All-in-one ATEX and IECEx certified solution ensures reliable communication and timely alerts in explosive environments, simplifying deployment and boosting safety.

Applications

Topology Diagram Click to Compare

Analog to PABX / PSTN

Analog via Voice Gateway (SIP)

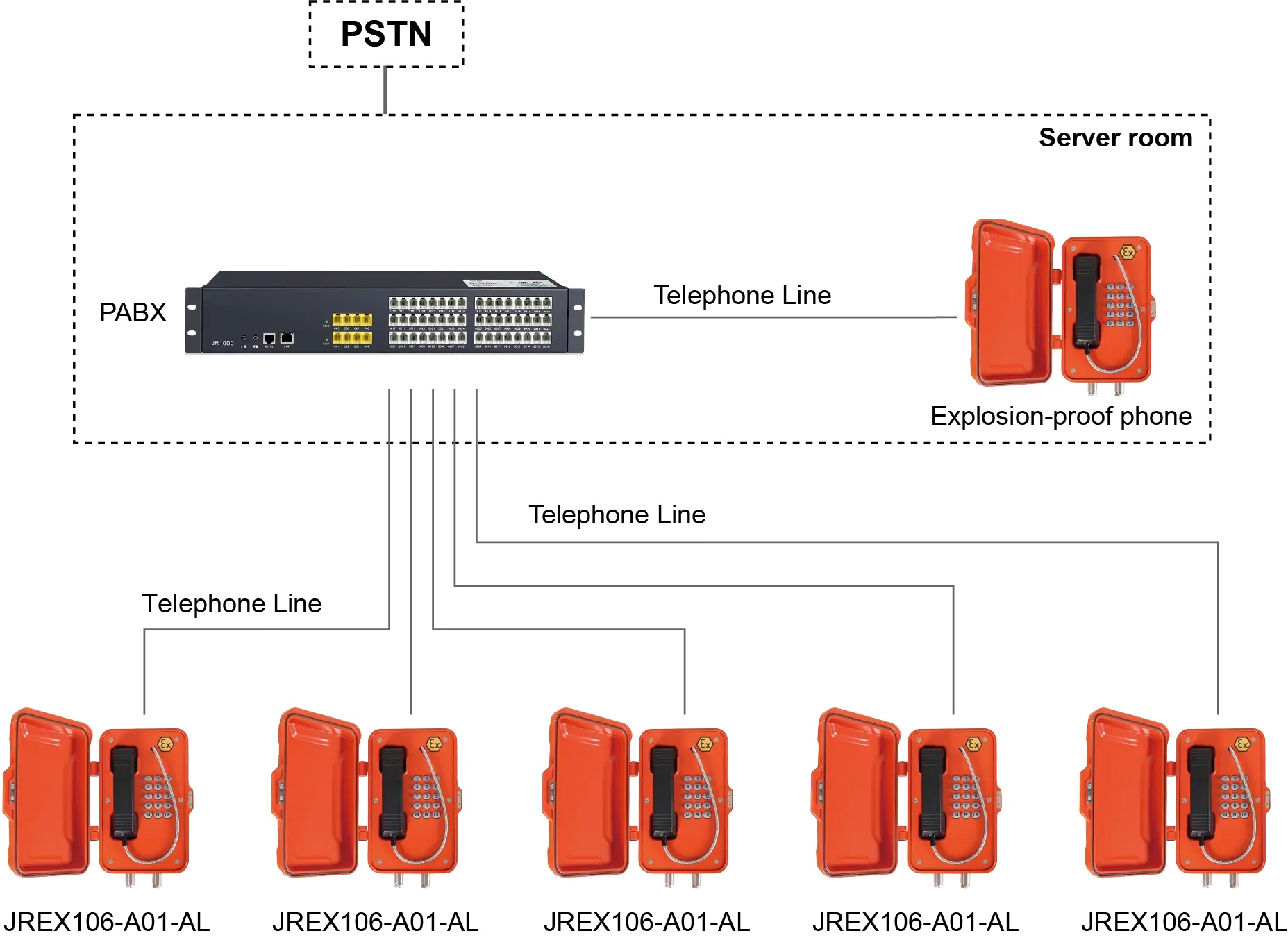

Analog telephone connects directly to the PABX and calls outside lines through the PSTN. Suitable for traditional analog-based systems.

Analog telephone connects to a voice gateway, converting analog signals into SIP for integration with SIP-based communication systems.

Analog Telephone to PABX and PSTN Topology

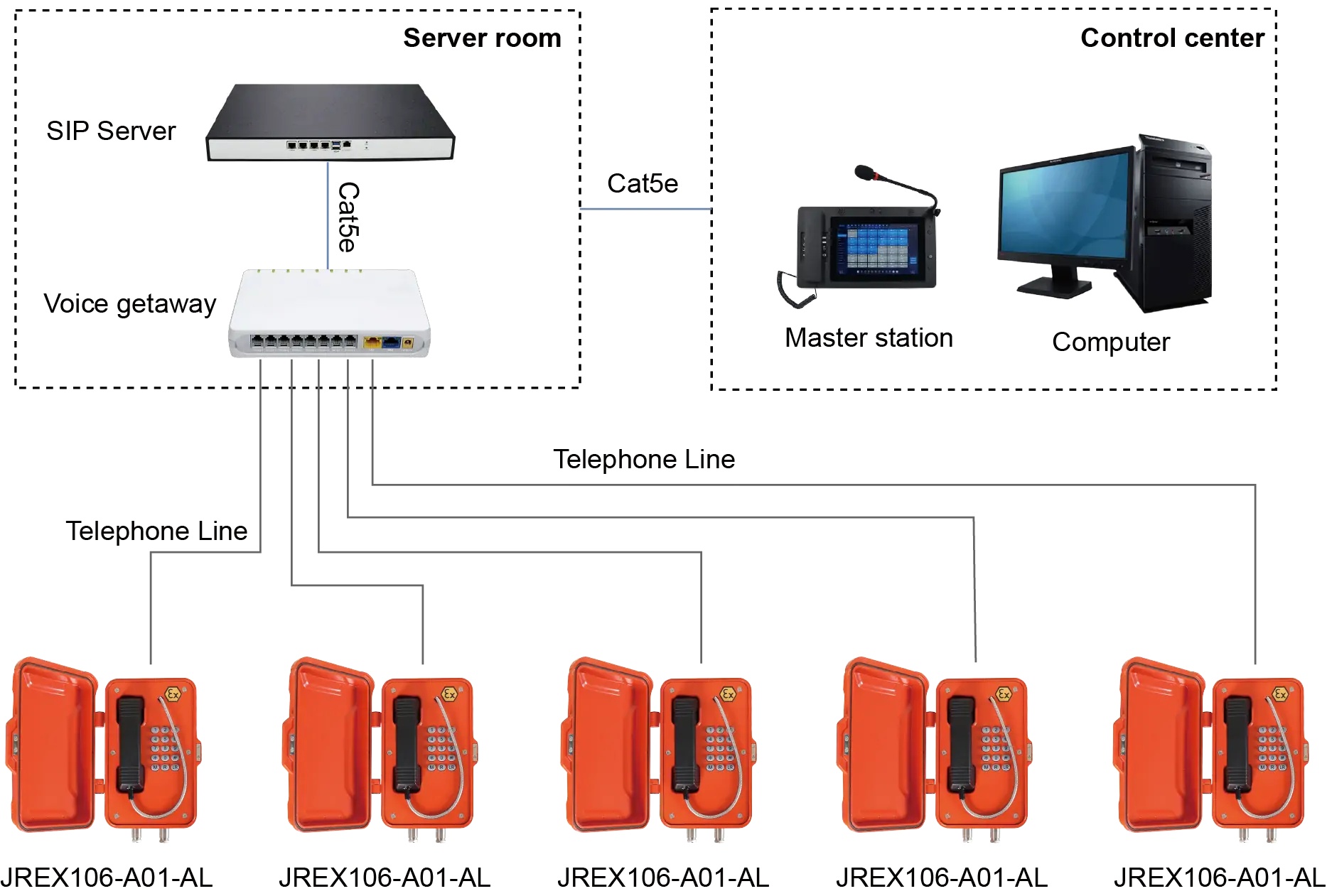

Analog Telephone via Voice Gateway SIP Topology

Product Video

Technical Specifications

Analog Specification
Power supply	Drawn from telephone line
Operating voltage	24 VDC to 65 VDC
Operating current	20 mA DC to 100 mA DC
Ringer operating voltage	48 VAC to 90 VAC (calling frequency 21 to 54 Hz)
Ringing volume	80 dB (A) @ 1 meter
Dialing method	PD or DTMF mode can be set via the menu. DTMF mode in accordance with ITU-T recommendation Q.23
Lightning / Transients	Protection meets ITU-T K.21 enhanced levels
Programming	It can be programmed remotely via DTMF tones or the keypad
Technical Specifications
Compatible with all standard PABX systems
Remote programming, allows you to manage your network from a central location
Programmable auto hang-up timer
Supports automatic dialing with delay after picking up the phone
Supports scheduled dialing to the central control phone to detect whether the phone is working properly
Supports the telephone line to power external light fixed on the top(no external power supply needed)
Supports MIC mute function
Supports call transfer
Can be adapted according to the model of the Analog PABX to support the sequential calling function
Phone line powered

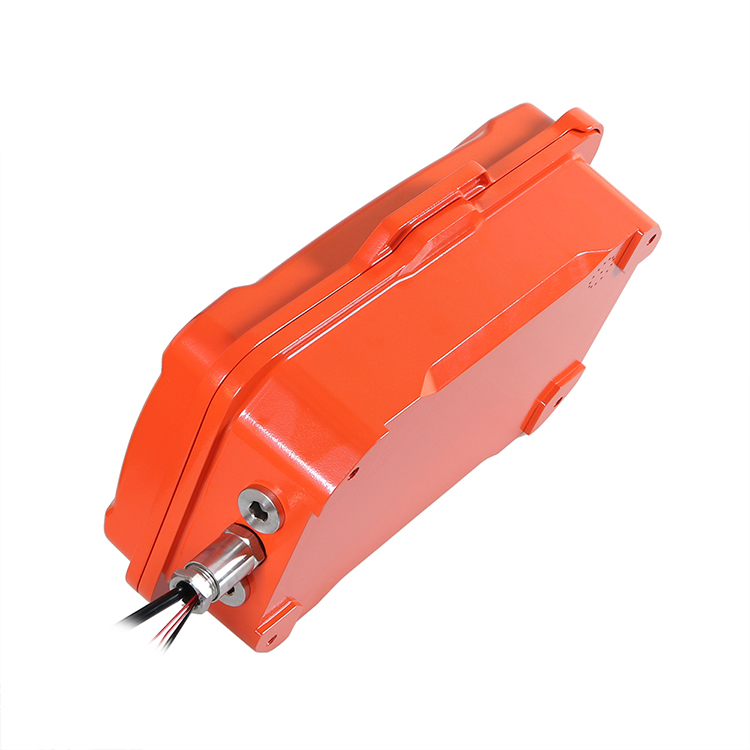

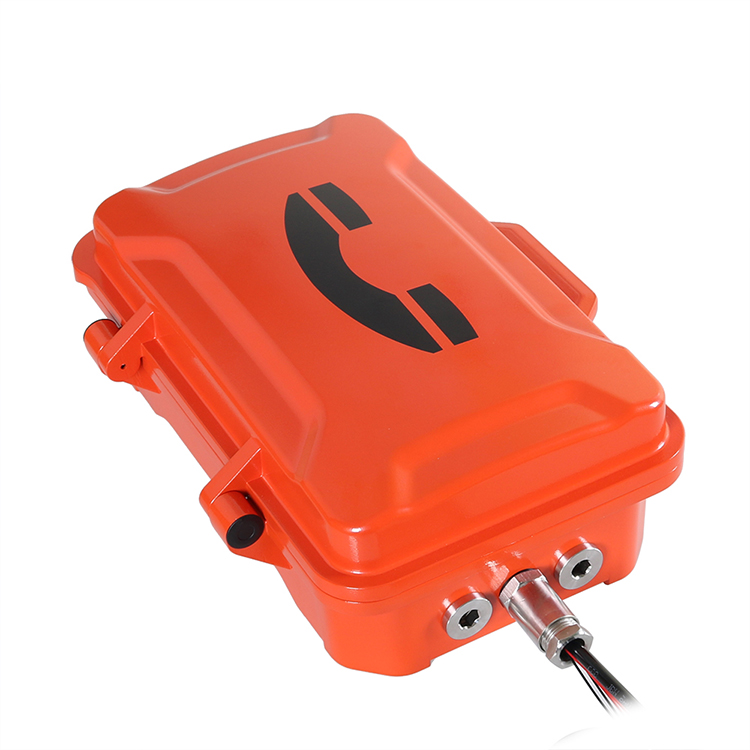

Wiring access, 3xM20 cable gland entry points
Operating temperature -40˚C to 65˚C / Storage temperature -40°C to 75°C
M.T.B.F. exceeds 50,000 hours under normal operating conditions
