Waterproof Telephones JR102-FK-4G

Aluminum alloy die-casting body
Protection level IP66/IP67
Advanced noise reduction technology for HD calls
Corrosion-resistant hardware
CE, FCC, RoHS, IK10, IP67, ISO9001 standards

Get Pricing/info Download

Main Features

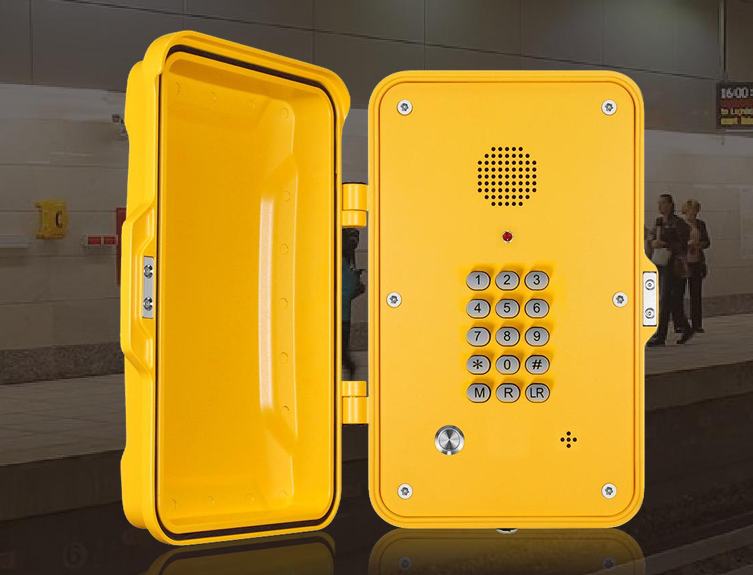

Industrial Plant Waterproof Telephones JR102-FK-4G

Item Description

4G wireless communication with remote configuration
Hands-free telephone, one vandal resistant metal button for emergency call
Full rubber keypad; 'M', 'R', and 'LR' can be set as speed dial buttons (optional)
With LED light, blinking when incoming call
Noise-cancelling microphone
Built-in 2W speaker
Magnetic reed hook switch to reduce wear-prone parts
Without door cover, supports wall mounting with mounting bar

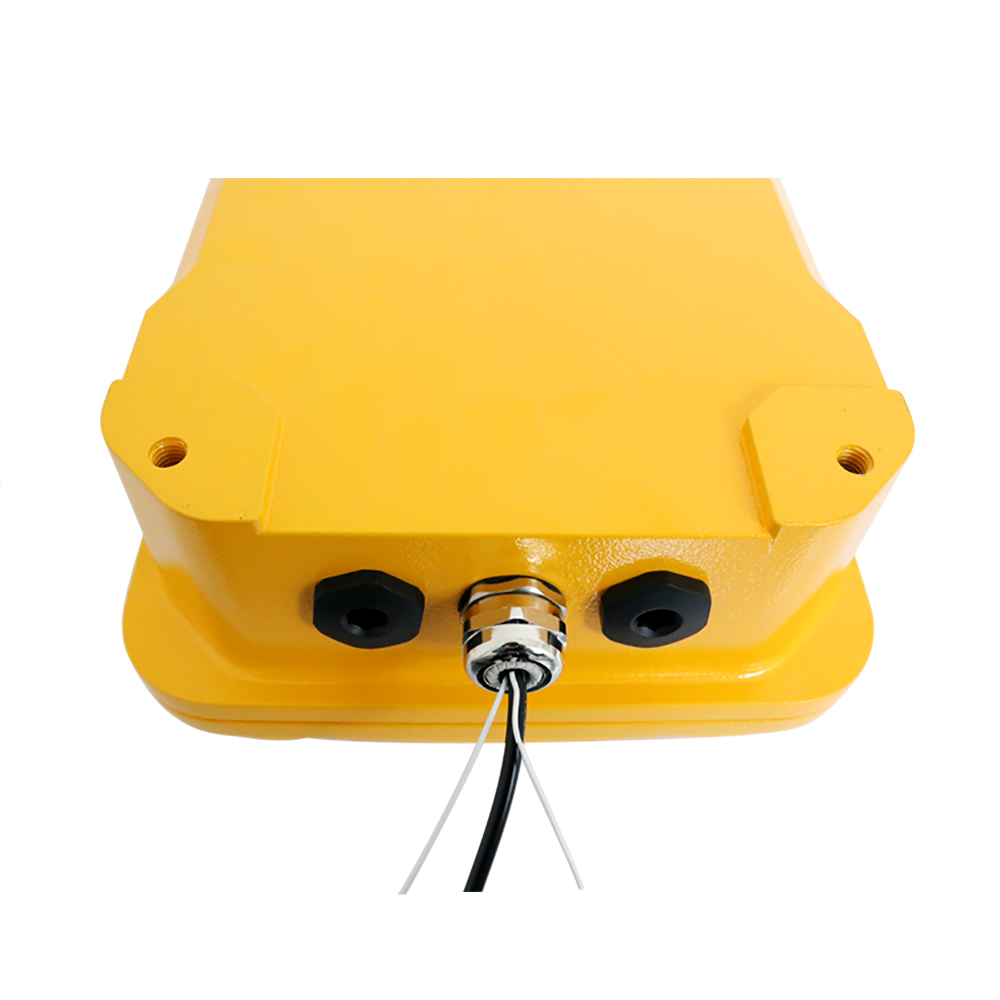

Wiring access, 3xM20 cable gland entry points

Industrial Plant Waterproof Telephones Description

JR102-FK as a Industrial Plant Waterproof Telephones, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

Easy installation. The cable entrance is on the bottom of the phone to prevent from artificial damage, while the button is weather and vandal resistant.

Industrial Plant Waterproof Telephones Applications

This Industrial Plant Waterproof Telephones is very popular for Tunnels, Mining, Marine, Construction sites, Blast furnace areas, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants, oil&Gas station, and related heavy duty industrial rough environment conditions, etc.

IP66–67 Water Protection Grade

Die-cast aluminum alloy body with IP66/IP67 rating, IK10 impact resistance, and corrosion-resistant hardware, withstanding -40°C~75°C, dust, moisture and harsh conditions.

Superior Noise Reduction

Advanced noise reduction filters out ambient noise, ensuring clear on-site and dispatch communication.

Multi-scenario Adaptability

Fulfills on-site emergency communication and dispatching requirements across diverse operation scenarios.

Broadcast & Alarm Integration

Supports integration with external audible and visual alarm beacons for clear call alerts in noisy environments.

Applications

Insert the SIM card into the 4G phone and connect to the operator's network to make calls

JR102-FK-4G APPLICATIONS

Product Video

Technical Specifications

4G Specifications
Power supply	12V DC
Adapter input	7.4 V-12V DC
Power consumption	Idle 0.3W / Working 1.5W
Communication mode	4G
Working frequency	Depends on modules
Ringing tone	90 dB (A) @ 1 meter
Configuration method	Remote configuration via SMS, allows management from a central location
Configuration	Remote monitoring / Auto-dial numbers
Time out	Enforces a fixed call maximum time limit of 6-8 minutes from off-hook, configurably
Diagnostic function	Low battery voltage, weak signal, speaker volume, microphone volume can be reported via message
Antenna	Quad-band SMA male, externally mounted with 2 m cable
Environment temperature	Operating temperature -40˚C to 65˚C; Storage temperature -40°C to 75°C
M.T.B.F.	Exceeds 50,000 hours under normal operating conditions

4G Module EC25
Module	EC25-E	EC25-EU / EUX	EC25-J	EC25-V
Region	EMEA/Korea/Thailand/India	EMEA/Thailand	Japanese	America Verizon
Frequency
LTE-FDD	B1/B3/B5/B7/B8/B20	B1/B3/B7/B8/B20/B28A	B1/B3/B8/B18/B19/B26	B4/B13
LTE-TDD	B38/B40/B41	B38/B40/B41	B41	/
WCDMA	B38/B40/B41	B1/B8	B1/B6/B8/B19	/
GSM/EDGE	B3/B8	B3/B8	/	/
GNSS	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option)
Module	EC25-A	EC25-AF / AFX / AFXD (Data-only)	EC25-AUX		EC25-MX
Region	North America	North America	Latin America/Australia/New Zealand		Mexico
Frequency
LTE-FDD	B2/B4/B12	B2/B4/B5/B12/B13/B14/B66/B71	B1/B2/B3/B4/B5/B7/B8/B28		B2/B4/B5/B7/B28/B66
LTE-TDD	/	/	B40		/
WCDMA	B2/B4/B5	B2/B4/B5	B1/B2/B4/B5/B8		B2/B4/B5
GSM/EDGE	/	/	B2/B3/B5/B8		/
GNSS	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option)	GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (option)		/
